Passenger's Air Mix Control Motor Replacement

  1. Remove the glove box (see GLOVE BOX REMOVAL/INSTALLATION ).
  2. Remove the USB adapter control unit, (see USB ADAPTER CONTROL UNIT REPLACEMENT )

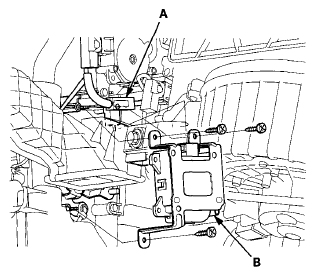

  3. Disconnect the 5P connector (A) from the passenger's air mix control motor. Remove the self-tapping screws and the passenger's air mix control motor (B) from the heater unit.
    Fig 1: Disconnecting 5P Connector From Passenger's Air Mix Control Motor
    G07354790Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
