Driver's Air Mix Control Motor Replacement

  1. Remove the driver's dashboard undercover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).
  2. Disconnect the connectors (A) from the adaptive front lighting control unit, the electronically controlled power steering control unit, and the daytime running lights control unit. Remove the relay (B), the bolt, and the self-tapping screws, then remove the bracket (C).

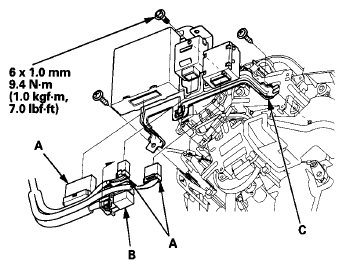

    Fig 1: Disconnecting Connectors From Adaptive Front Lighting Control Unit With Torque Specifications
    G07354788Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the 5P connector (A) from the driver's air mix control motor. Remove the connector clip (B). Remove the self-tapping screws and the driver's air mix control motor (C) from the heater unit.
    Fig 2: Disconnecting 5P Connector From Driver's Air Mix Control Motor
    G07354789Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the motor in the reverse order of removal. Make sure the pin on the motor is properly engaged with the linkage. After installation, make sure the motor runs smoothly.
