Fan Motor Test

  1. Disconnect the 2P connectors from the radiator fan motor (A) and the A/C condenser fan motor (B).

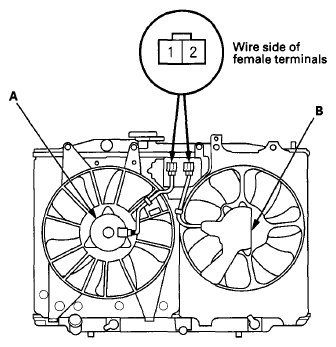

    Fig 1: Disconnecting 2P Connectors From Radiator Fan Motor And A/C Condenser Fan Motor
    G07353740Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Test each motor by connecting battery power to terminal No. 1 and ground to terminal No. 2.
  3. If either motor fails to run or does not run smoothly, replace it (see FAN, FAN MOTOR, AND SHROUD REMOVAL AND INSTALLATION ).
