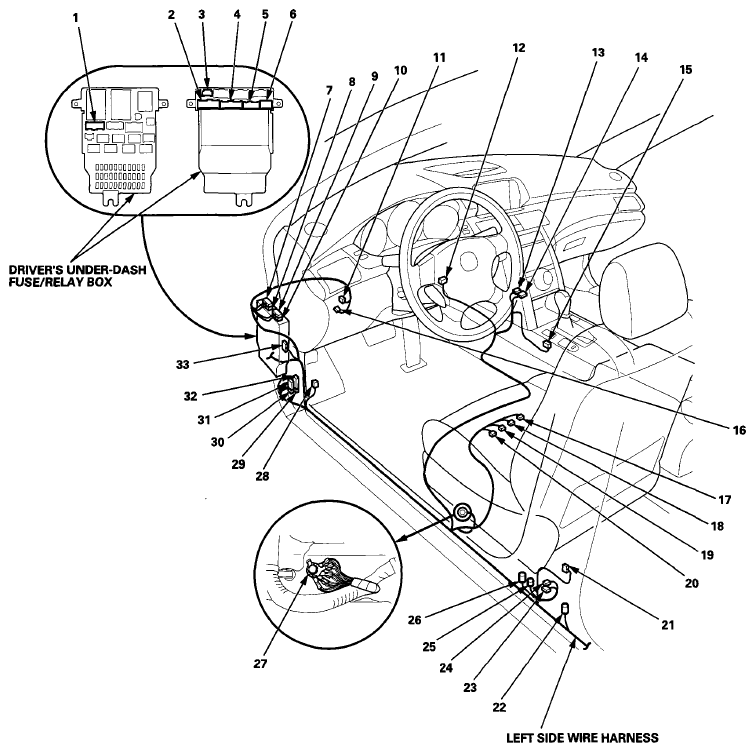

Left Side Wire Harness (Front branch)
HARNESS CONNECTOR TERMINALS REFERENCE CHART
| Connector or Terminal |
Ref |
Cavities |
Location |
Connects to |
Notes |
| Driver's e-pretensioner |
22 |
2 |
Left B-pillar |
|
|
| Driver's seat belt tensioner |
23 |
4 |
Left B-pillar |
|
|
| Driver's seat belt tension reducer solenoid |
24 |
2 |
Left B-pillar |
|
|
| Driver's seat ventilation switch |
15 |
14 |
Under console panel |
|
|
| Driver's seat heater switch |
15 |
6 |
Under console panel |
|
|
| Driver's side airbag inflator |
20 |
2 |
Under driver's seat |
|
|
| Driver's under-dash fuse/relay box connector E (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
4 |
16 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector F (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
2 |
14 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector G (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
6 |
6 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector H (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
5 |
14 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector J (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
1 |
21 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector Q (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
33 |
14 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector W (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
3 |
5 |
Left kick panel |
|
|
| Keyless access control unit connector B |
11 |
24 |
Under left side of dash |
|
|
| Left side impact sensor (1st) |
26 |
4 |
Left B-pillar |
|
|
| Parking brake switch |
16 |
1 |
Under left side of dash |
|
|
| C304 |
7 |
5 |
Under left side of dash |
Engine compartment wire harness |
|
| C601 |
31 |
23 |
Under left side of dash |
Dashboard wire harness |
|
| C602 |
32 |
34 |
Under left side of dash |
Dashboard wire harness |
|
| C603 |
13 |
6 |
Under middle of dash |
Right side wire harness |
|
| C604 |
14 |
16 |
Under middle of dash |
Right side wire harness |
|
| C607 (Junction connector) |
28 |
12 |
Under left side of dash |
|
|
| C608 (Junction connector) |
29 |
12 |
Under left side of dash |
|
|
| C609 (Junction connector) |
30 |
12 |
Under left side of dash |
|
|
| C610 (Junction connector) |
25 |
12 |
Under driver's seat |
|
|
| C631 |
9 |
24 |
Under left side of dash |
Roof wire harness |
|
| C632 |
8 |
8 |
Under left side of dash |
Roof wire harness |
|
| C751 |
10 |
14 |
Under left side of dash |
Driver's door subharness |
|
| C781 |
21 |
17 |
Left B-pillar |
Left rear door wire harness |
|
| C901 |
18 |
23 |
Under driver's seat |
Driver's seat wire harness |
|
| C902 |
19 |
6 |
Under driver's seat |
Driver's seat wire harness |
|
| C903 |
17 |
2 |
Under driver's seat |
Driver's seat wire harness |
|
| C991 |
12 |
12 |
Under middle of dash |
E-pretensioner subharness |
|
| G601 |
27 |
|
Under driver's seat |
Body ground, via left side wire harness |
|
