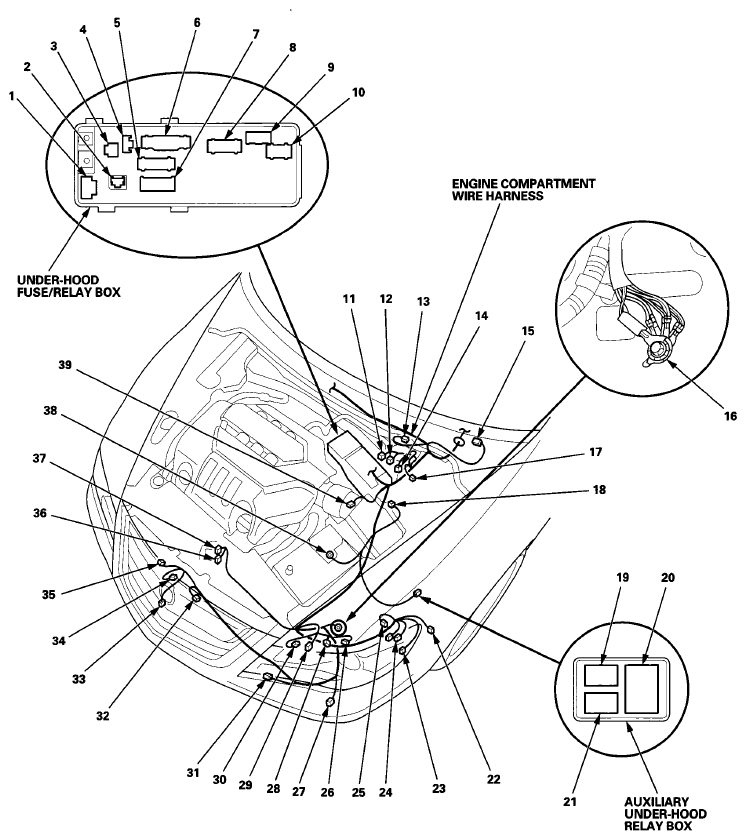

| Adaptive cruise control relay (see
AUXILIARY UNDER-HOOD RELAY BOX
) |
19 |
5 |
Auxiliary under-hood relay box |
|
|
| Battery terminal fuse box (+) |
38 |
- |
Left side of engine compartment |
|
|
| Brake fluid level switch |
13 |
2 |
Left side of engine compartment |
|
|
| Daytime running lights relay (see
AUXILIARY UNDER-HOOD RELAY BOX
) |
21 |
5 |
Auxiliary under-hood relay box |
|
Canada models |
| ECPS valve |
14 |
6 |
Left side of engine compartment |
|
|
| Horn (high) |
32 |
1 |
Behind left side of front bumper |
|
|
| Horn (low) |
35 |
1 |
Front of engine compartment |
|
|
| Left adaptive front lighting gearbox connector |
25 |
8 |
Behind left headlight |
|
|
| Left fog light |
27 |
2 |
Behind left side of front bumper |
|
|
| Left front brake fluid pressure sensor |
11 |
3 |
Left side of engine compartment |
|
|
| Left front impact sensor |
23 |
2 |
Behind left side of front bumper |
|
|
| Left front TPMS initiator |
22 |
3 |
Behind left side of engine compartment |
|
|
| Left front parking light |
24 |
2 |
Behind left headlight |
|
|
| Left front turn signal light |
29 |
3 |
Behind left headlight |
|
|
| Left front wheel speed sensor |
17 |
2 |
Left side of engine compartment |
|
|
| Left headlight (high) |
30 |
2 |
Behind left headlight |
|
|
| Left headlight (low) |
26 |
2 |
Behind left headlight |
|
|
| Left headlight leveling motor connector |
28 |
3 |
Behind left headlight |
|
|
| MAF sensor/IAT sensor |
39 |
5 |
On the air cleaner box |
|
|
| Millimeter wave radar |
33 |
5 |
Front of engine compartment |
|
|
| Radiator fan control (RFC) unit connector A |
37 |
3 |
Front of engine compartment |
|
|
| Radiator fan control (RFC) unit connector B |
36 |
1 |
Front of engine compartment |
|
|
| Radiator fan control (RFC) unit relay (see
AUXILIARY UNDER-HOOD RELAY BOX
) |
20 |
4 |
Auxiliary under-hood relay box |
|
|
| Right front brake fluid pressure sensor |
12 |
3 |
Left side of engine compartment |
|
|
| Security hood switch |
34 |
2 |
Front of engine compartment |
|
|
| Under-hood fuse/relay box connector A (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
2 |
3 |
Behind under-hood fuse/relay box |
ELD |
|
| Under-hood fuse/relay box connector B (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
3 |
1 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector C (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
4 |
2 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector D (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
7 |
9 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector E (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
5 |
16 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector F (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
6 |
20 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector G (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
1 |
2 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector H (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
8 |
14 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector J (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
10 |
10 |
Behind under-hood fuse/relay box |
|
|
| Under-hood fuse/relay box connector K (see
CONNECTOR TO FUSE/RELAY BOX INDEX
) |
9 |
5 |
Behind under-hood fuse/relay box |
|
|
| Windshield wiper motor |
15 |
5 |
Left side of engine compartment |
|
|
| C104 |
18 |
1 |
Left side of engine compartment |
Engine wire harness |
|
| C309 |
31 |
6 |
Behind left side of front bumper |
A/C compressor clutch subharness |
|
| G301 |
16 |
|
Behind left side of front bumper |
Body ground, via engine compartment wire harness |
|
