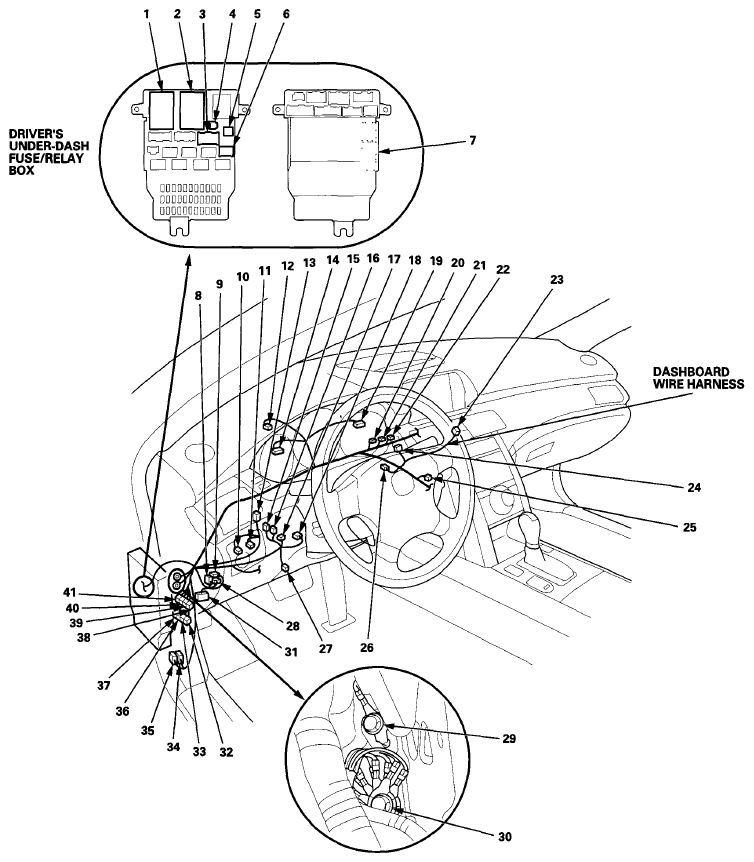

| VSA OFF switch |
13 |
6 |
Left side of dash |
|
|
| AFS OFF/VSA OFF switch |
13 |
6 |
Left side of dash |
|
|
| AFS OFF/VSA OFF/CMBS switch |
13 |
6 |
Left side of dash |
|
|
| Brake pedal position switch |
18 |
4 |
Under left side of dash |
|
|
| Dashlights brightness controller |
24 |
6 |
Middle of dash |
|
|
| Data link connector |
31 |
16 |
Under left side of dash |
|
|
| Driver's footwell light |
27 |
2 |
Under left side of dash |
|
|
| Driver's under-dash fuse/relay box connector A (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
3 |
6 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector N (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
2 |
45 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector P (MICU) (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
7 |
30 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector R (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
4 |
2 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector S (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
5 |
2 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector T (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
6 |
6 |
Left kick panel |
|
|
| Driver's under-dash fuse/relay box connector X (see
DRIVER'S UNDER-DASH FUSE/RELAY BOX
) |
1 |
39 |
Left kick panel |
|
|
| Driver's vent air temperature sensor |
12 |
2 |
Behind gauge |
|
|
| Gauge control module connector A |
19 |
20 |
Behind gauge |
|
|
| Gauge control module connector B |
14 |
28 |
Behind gauge |
|
|
| Hazard warning switch/front passenger's airbag cutoff indicator |
23 |
6 |
Middle of dash |
|
|
| Headlight washer switch |
11 |
5 |
Left side of dash |
|
Canada models |
| In-car temperature sensor |
25 |
4 |
In the steering column |
|
|
| Keyless access control unit connector A |
16 |
31 |
Under left side of dash |
|
|
| Keyless access control unit connector C |
15 |
17 |
Under left side of dash |
|
|
| Power mirror switch |
10 |
10 |
Left side of dash |
|
|
| Turn signal/hazard relay 2 (sounder) |
26 |
3 |
Middle of dash |
|
|
| C301 |
28 |
34 |
Under left side of dash |
Engine compartment wire harness |
|
| C302 |
9 |
3 |
Under left side of dash |
Engine compartment wire harness |
|
| C303 |
8 |
4 |
Under left side of dash |
Engine compartment wire harness |
|
| C507 (Junction connector) |
39 |
12 |
Under left side of dash |
|
|
| C508 (Junction connector) |
40 |
12 |
Under left side of dash |
|
|
| C509 (Junction connector) |
41 |
12 |
Under left side of dash |
|
|
| C510 (Junction connector) |
36 |
12 |
Under left side of dash |
|
|
| C511 (Junction connector) |
33 |
12 |
Under left side of dash |
|
|
| C512 (Junction connector) |
37 |
12 |
Under left side of dash |
|
|
| C513 (Junction connector) |
32 |
12 |
Under left side of dash |
|
|
| C514 (Junction connector) |
17 |
12 |
Under left side of dash |
|
|
| C515 (Junction connector) |
22 |
12 |
Under middle of dash |
|
|
| C516 (Junction connector) |
20 |
12 |
Under middle of dash |
|
|
| C517 (Junction connector) |
21 |
12 |
Under middle of dash |
|
|
| C518 (Junction connector) |
38 |
12 |
Under left side of dash |
|
|
| C601 |
35 |
23 |
Under left side of dash |
Left side wire harness |
|
| C602 |
34 |
34 |
Under left side of dash |
Left side wire harness |
|
| G501 |
30 |
|
Left kick panel |
Body ground, via dashboard wire harness |
|
| G502 |
29 |
|
Left kick panel |
Body ground, via dashboard wire harness |
|
