Repair and Diagnosis
>>
Accessories & Equipment
>>
Gauges & Instrument Panels
>>
Gauges
>>
Component Location Index
Component Location Index

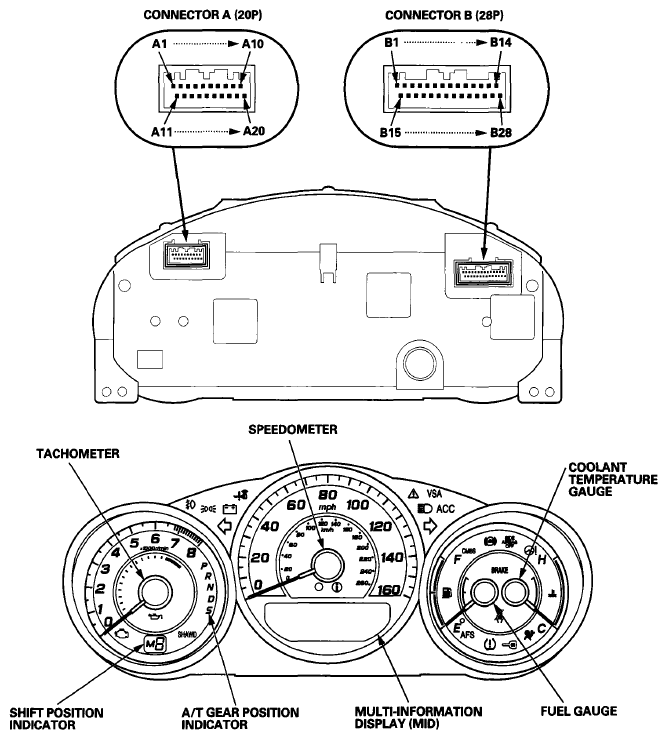

Fig 1: Identifying Gauges Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

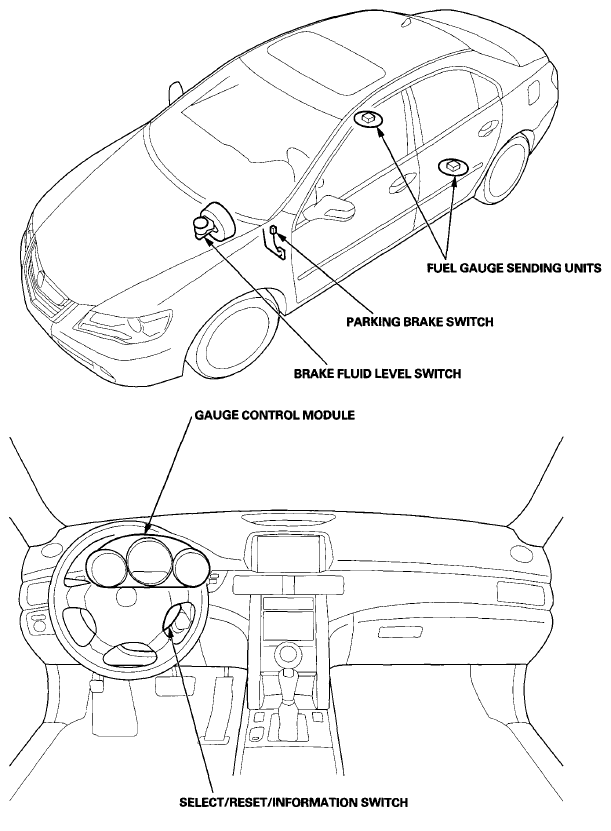

Fig 2: Identifying Gauges Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
