Glove Box Removal/Installation

SRS components are located in this area. Review the SRS component locations COMPONENT LOCATION INDEX ) and the precautions and procedures PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove the passenger's dashboard undercover (see PASSENGER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION  ).
2. Open the glove box.
3. Remove the cap (A), then disconnect the glove box damper (B) from the pivot (C) on the glove box.
   Fig 1: Identifying Glove Box Damper, Pivot And Cap

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Close the glove box.
5. Remove the bolts.
   Fig 2: Glove Box And Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. While holding the glove box (A), release the glove box stop (B) on each side from the dashboard by pushing them in, then remove the glove box.
   Fig 3: Releasing Glove Box Stop On Side From Dashboard

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

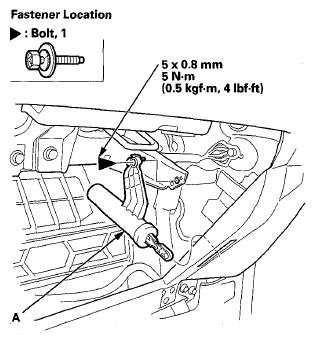

7. Remove the bolt, then remove the glove box damper (A).
   Fig 4: Glove Box Damper And Bolt With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Install the glove box in the reverse order of removal.
