B-Pillar Upper/Lower Trim

SRS components are located in this area. Review the SRS component locations (see COMPONENT LOCATION INDEX ) and the precautions and procedures (see PRECAUTIONS AND PROCEDURES ) before doing repairs or service.

1. Remove these items:
   • Front door sill trim (see FRONT DOOR SILL AREA  )
   • Rear door sill trim (see REAR DOOR SILL AREA  )
   • Front door opening seal, as needed (see step  4 under Trim Removal/Installation - Door Areas  )
   • Rear door opening seal, as needed (see step  3 under Trim Removal/Installation - Door Areas  )
2. Slide the front seat fully forward.
3. Remove the B-pillar lower trim (A).
   1. Detach the lower clips by pulling the middle of the trim back by hand.
   2. While releasing the upper tabs (B), pull the upper area of the trim back to release the upper hooks (C).
      Fig 1: Removing B-Pillar Lower Trim And Upper Tabs

      Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Remove the front seat belt lower anchor (see FRONT SEAT BELT REPLACEMENT ).
5. Pull the bottom of the B-pillar upper trim (A) back by hand to detach the lower hooks (B).

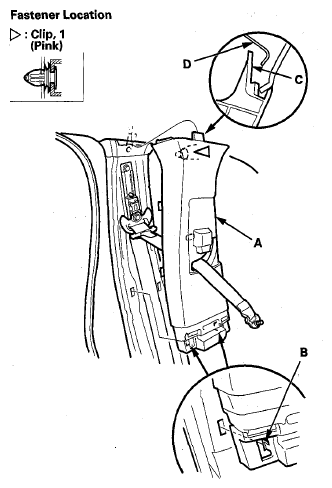

   Fig 2: Identifying B-Pillar Upper Trim And Lower Hooks

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Detach the upper clip by pulling the top of the B-pillar upper trim. Pull the trim down to release the upper hook (C) from the side curtain airbag B-pillar bracket (D).
7. Pass the front seat belt (A) lower anchor out through a hole in the slider (B), then remove the B-pillar upper trim (C).
   Fig 3: Removing Front Seat Belt And B-Pillar Upper Trim

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
8. Install the trim in the reverse order of removal, and note these items:
   • If the clips (A) are damaged or stress-whitened, replace them with new ones.
   • If the side curtain airbag has deployed, replace the B-pillar upper and lower trim and all the clips on the trim with new ones (see COMPONENT REPLACEMENT/INSPECTION AFTER DEPLOYMENT ).
   • To prevent the side curtain airbags from deploying improperly and possibly causing injury, inspect the trim and replace it if it has any of these types of damage:
     • Any cracks or deformations in the B-pillar upper trim (B) and the upper hook (C), and any stress-whitened areas in the upper part of the trim
     • Any cracks or deformations in the B-pillar lower trim (D), and any breakages in the part (E) fitted with the B-pillar upper trim
     • Any cracks or stress-whitened areas in the clips seating surfaces (F)
   • Replace any damaged parts with new ones.
   • Make sure the top of the trim overlaps with the headliner correctly (see CHECKING AND ADJUSTING THE HEADLINER/PILLAR TRIM OVERLAP ).
   • Make sure the pin (G) on the front seat belt shoulder anchor adjuster (H) and the hole (I) on the back of the slider are engaged when installing the B-pillar upper trim.
   • Make sure the trim hook is installed into the side curtain airbag B-pillar bracket securely.
   • Push the clip and the hooks into place securely.
   • Before installing the anchor bolt, make sure there are no twists or kinks in the seat belt.

     Trim inspection

     Fig 4: Identifying B-Pillar Upper Trim And Upper Hook

     Courtesy of AMERICAN HONDA MOTOR CO., INC.

     Slider engagement with shoulder anchor adjuster

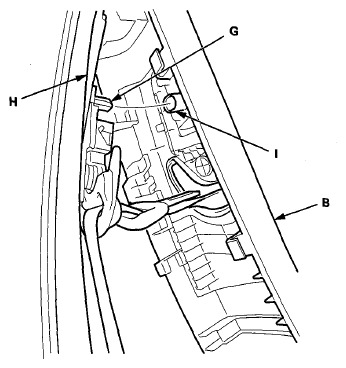

     Fig 5: Identifying Pin On Front Seat Belt Shoulder Anchor Adjuster And Hole

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
