Front Door Sash Inner Trim Replacement

NOTE: Take care not to scratch the door.

Remove the door panel
Using a clip remover, detach the clips fastening the front door sash inner trim (A).

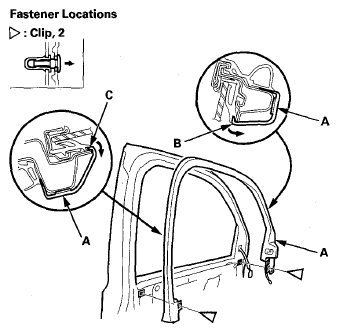

Fig 1: Identifying Front Door Sash Inner Trim And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Pull the door glass opening side of the trim back to release the hooks (B, C) from the door glass opening flange of the door sash.
Install the trim in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Push the hooks and the clips into place securely.
