GPS Antenna Removal/Installation

NOTE:

Put on gloves to protect your hands.
Take care not to scratch the dashboard and related parts.
Lay a shop towel under the parts when working on them to protect the face panel from scratches or other damage.

Remove the audio-navigation unit (see AUDIO-NAVIGATION UNIT REMOVAL/INSTALLATION ).
Remove the navigation display unit (see NAVIGATION DISPLAY UNIT REMOVAL/INSTALLATION ).

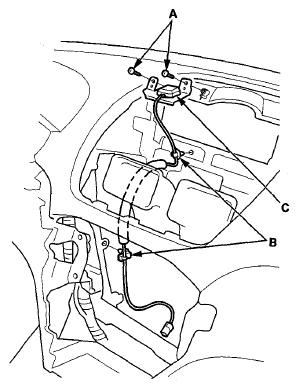

Fig 1: Identifying GPS Antenna, Clips And Screws
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Remove the screws (A), and detach the clips (B), then remove the GPS antenna (C).
Install the antenna in the reverse order of removal.
