Subwoofer (without navigation)

  1. Remove the right rear side trim panel (see TRIM REMOVAL/INSTALLATION - REAR SIDE AREA ).
  2. Disconnect the 8P connector (A), then remove the bolts (B), nuts (C) and pull out the subwoofer (B).

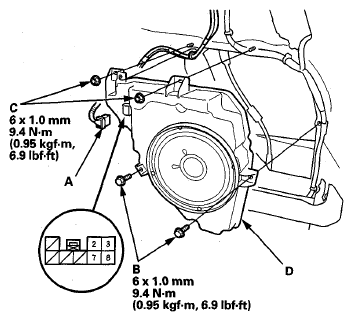

    Fig 1: Subwoofer With Torque Specifications (Without Navigation)
    G08054267Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Measure the resistance between the terminals No. 2 and No. 7 and terminals No. 3 and No. 8. There should be about 2 Ω.
  4. If the resistance is not as specified, replace the subwoofer.
