The Gauge Drive Circuit Check

When entering the self-diagnostic mode, the speedometer, the tachometer, the fuel gauge, and the coolant temperature gauge needles sweep from the minimum position to maximum position, then return to the minimum position.

NOTE: After the beeper stops sounding and the gauge needles return to the minimum position, pushing the SEL/RESET button starts the Beeper Drive Circuit Check (one beep) and the Gauge Drive Circuit Check again.

The check cannot be started again until the gauge needles return to the minimum position.

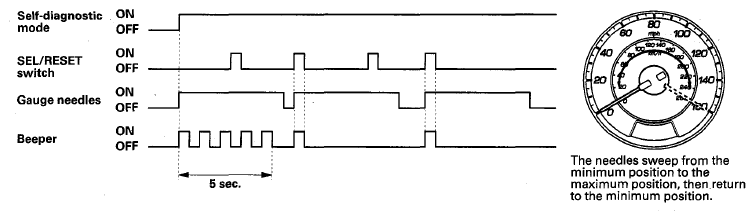

Fig 1: Identifying Blinking Screen And Needle Meter

Courtesy of AMERICAN HONDA MOTOR CO., INC.

If any needle fails to sweep or the beeper does not sound, replace the gauge control module.
