Gauge Control Module Replacement

NOTE: Before replacing the gauge control module, do the "Rewriting the ODO Data and Transferring the Maintenance Minder Data to a New Gauge Control Module "
  1. Remove the parts shown:
  2. Remove the screws from the gauge control module (A).

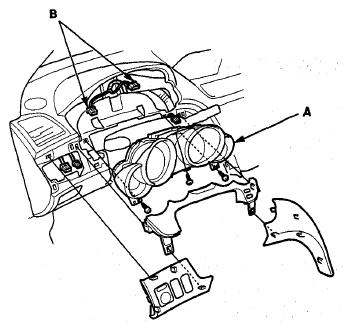

    Fig 1: Identifying Gauge Control Module And Connectors
    G08055500Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Disconnect the connectors (B), and remove the gauge control module.
  4. Install the gauge control module in the reverse order of removal.
