Blind Spot Information System (BSI) Indicator

When the blind spot information system (BSI) is normal, the BSI indicator (A) comes on for about 3 seconds after turning the ignition switch to ON (II).

When the BSI system detects a problem while in operation, the BSI system stops control, the BSI indicator comes on, and the BSI system indicates that the system must be checked in the MID.

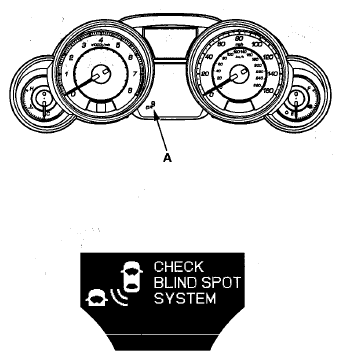

Fig 1: Identifying BSI Indicator
G08055667Courtesy of AMERICAN HONDA MOTOR CO., INC.
