Blind Spot Information System (BSI)
>>
Component Location Index
Component Location Index

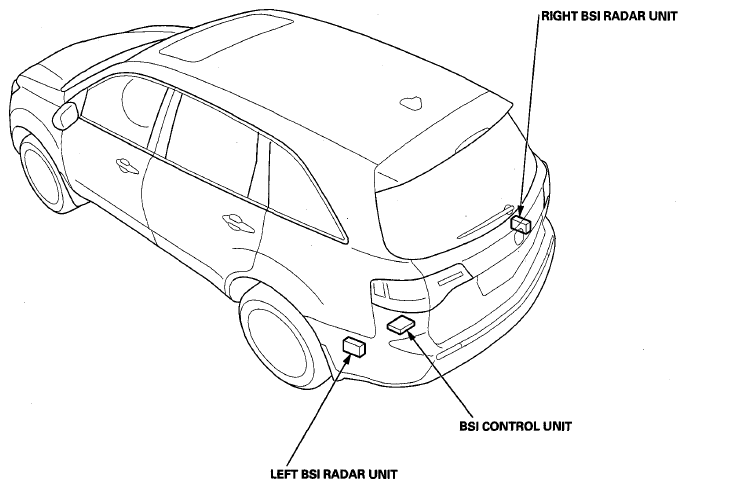

Fig 1: Identifying Blind Spot Information System Component Location (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

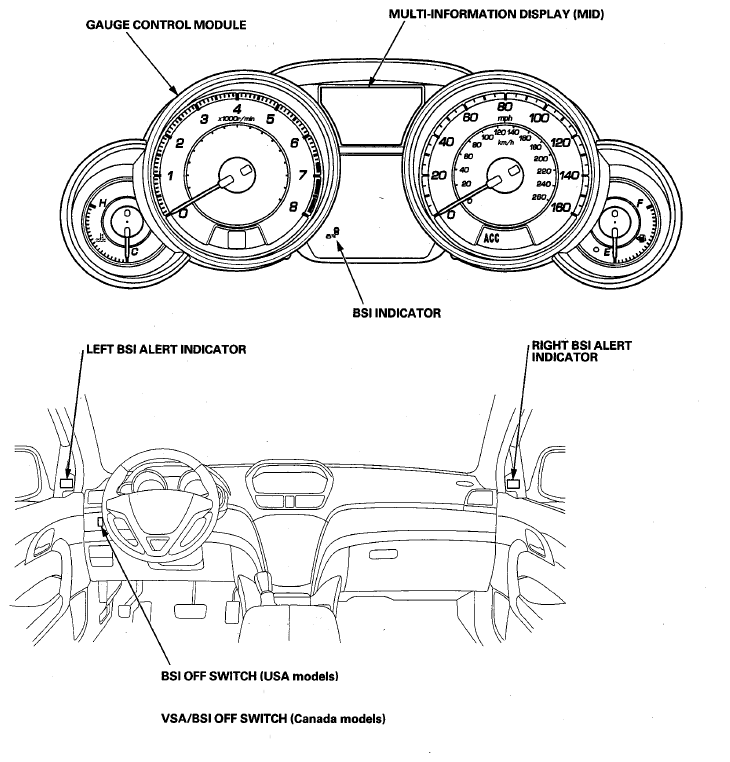

Fig 2: Identifying Blind Spot Information System Component Location (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
