Driver's Dashboard Undercover Removal/Installation

Special Tools Required

KTC Trim Tool Set SOJATP2014*

*Available through the Acura Tool and Equipment Program; call 888-424-6857

NOTE:

Take care not to scratch the dashboard or the related parts.
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components.

Remove the driver's dashboard undercover (A).
1. Turn the lock knob (B) 90 °.
2. Gently pull down the rear edge to detach the clips.
3. Disconnect the footwell light connector (C) and the power mirror control unit connector (D), and detach the harness clips (E).
4. Pull the undercover rearward to release the pin (F) from the holder (G).

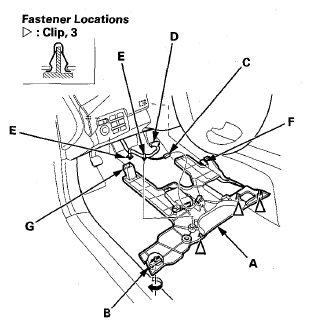

  Fig 1: Identifying Driver's Dashboard Undercover, Footwell Light Connector And Lock Knob
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the undercover in the reverse order of removal, and note these items:
- If the clips are damaged or stress-whitened, replace them with new ones.
- Make sure each connector is plugged in properly.
- Make sure the pin of the undercover is installed securely to the holder.
- Push the clips into place securely.
