Center Vent

NOTE: Take care not to scratch the dashboard or the related parts.
  1. Remove the audio and HVAC switch panel (without navigation) (see AUDIO AND HVAC SWITCH PANEL REMOVAL/INSTALLATION ) or the audio-navigation and HVAC switch panel (with navigation) (see AUDIO-NAVIGATION AND HVAC SWITCH PANEL REMOVAL/INSTALLATION ).
  2. From back of the switch panel, remove the screws, and release the hooks (A), then remove the center vents (B).

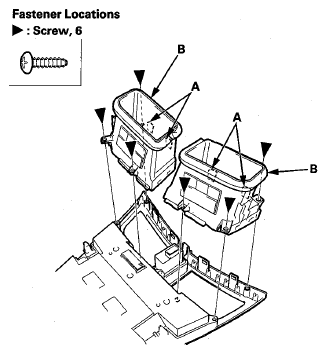

    Fig 1: Identifying Center Vents Hooks And Screws
    G08073932Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Install the center vents in the reverse order of removal, and push the hooks into place securely.
