Instrument Fascia Removal/Installation

Special Tools Required

KTC trim tool set SOJATP2014 *

* Available through the Acura Tool and Equipment Program, call 888-424-6857

NOTE:

Take care not to scratch the trim or the panels
Use the appropriate tool from the KTC trim tool set to avoid damage when removing components

Remove these items
- Driver's dashboard trim (see DRIVER'S DASHBOARD TRIM REMOVAL/INSTALLATION )
- Driver's center trim (see step 1 on CENTER TRIM REMOVAL/INSTALLATION )
Tilt the steering column fully down, and move the steering wheel all the way out

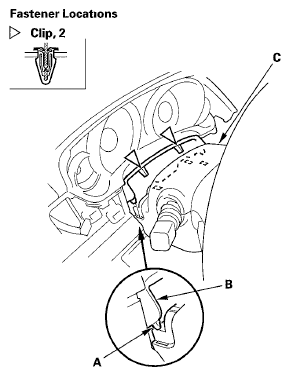

Detach the clips and the hooks (A) fastening the instrument fascia (B) from the upper column cover (C)

Fig 1: Identifying Instrument Fascia, Upper Column Cover And Hooks
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Gently pull out the bottom to release the clips, and remove the instrument fascia (A)

Fig 2: Identifying Instrument Fascia Location
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the instrument fascia in the reverse order of removal, and note these items
- If the clips are damaged or stress-whitened, replace them with new ones
- Push the clips and the hooks into place securely
