Transmission Fluid Pressure Switch E (6th Clutch) Replacement




1. Do the battery removal procedure.



. Remove the air cleaner.



3. Remove the battery base.

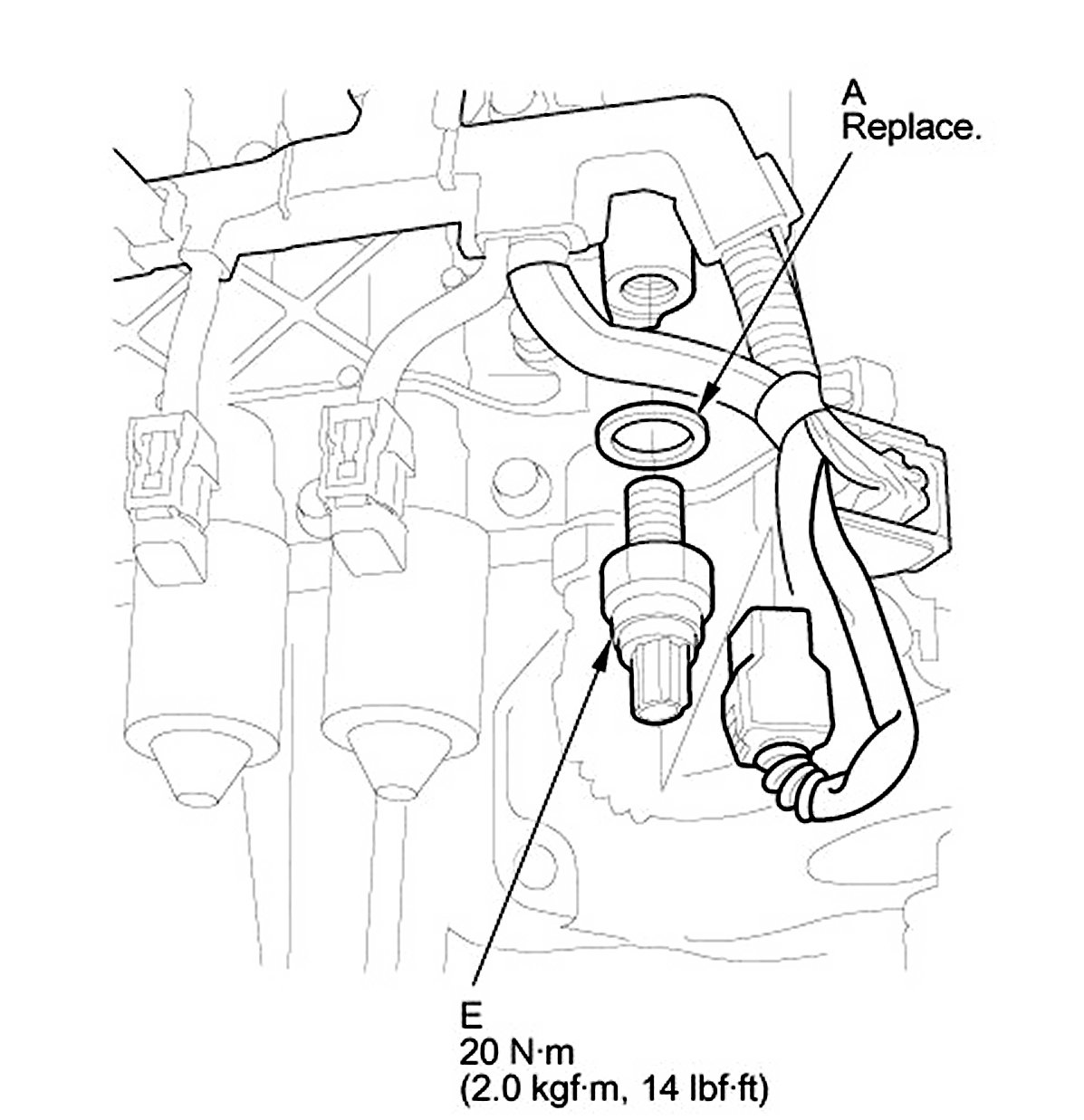

4. Disconnect the transmission fluid pressure switch E (6th clutch) connector, and remove transmission fluid pressure switch E (6th clutch) and the sealing washer (A).







. Install a new transmission fluid pressure switch E (6th clutch) and a new sealing washer, and tighten the switch.



6. Check the connector for corrosion, dirt, or oil, and clean or repair if necessary, then connect the connector securely.



. Install the battery base.



8. Install the air cleaner.



9. Do the battery installation procedure.
