Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement

1. Remove the propeller shaft Propeller Shaft Removal.

2. Remove the rear differential Rear Differential Removal.

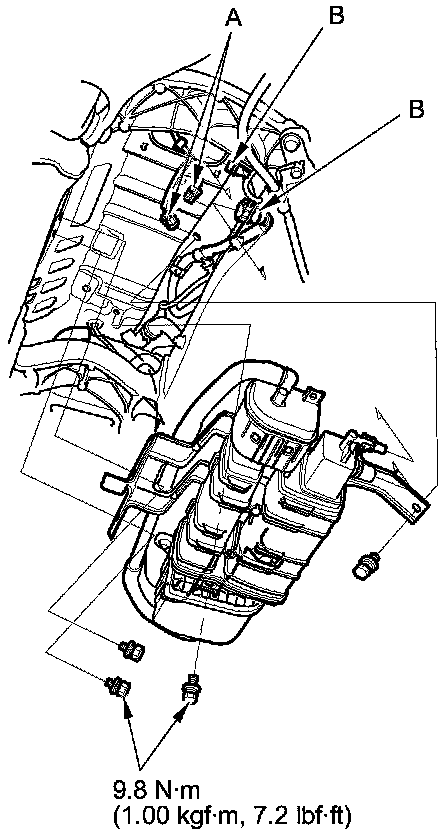

3. Disconnect the connectors (A) and the hoses (B).






4. Remove the EVAP canister (A).





5. Install the parts in the reverse order of removal.
