Home >> Acura >> 2011 >> RL V6-3.7L >> Repair and Diagnosis >> Locations >> Harness Locations >> Rear Headrest Sub-harness, Rear Headrest Actuator Sub-harness, and Rear Seat Cushion Header Sub-harness Connector (Canada)

Rear Headrest Sub-harness, Rear Headrest Actuator Sub-harness, and Rear Seat Cushion Header Sub-harness Connector (Canada)

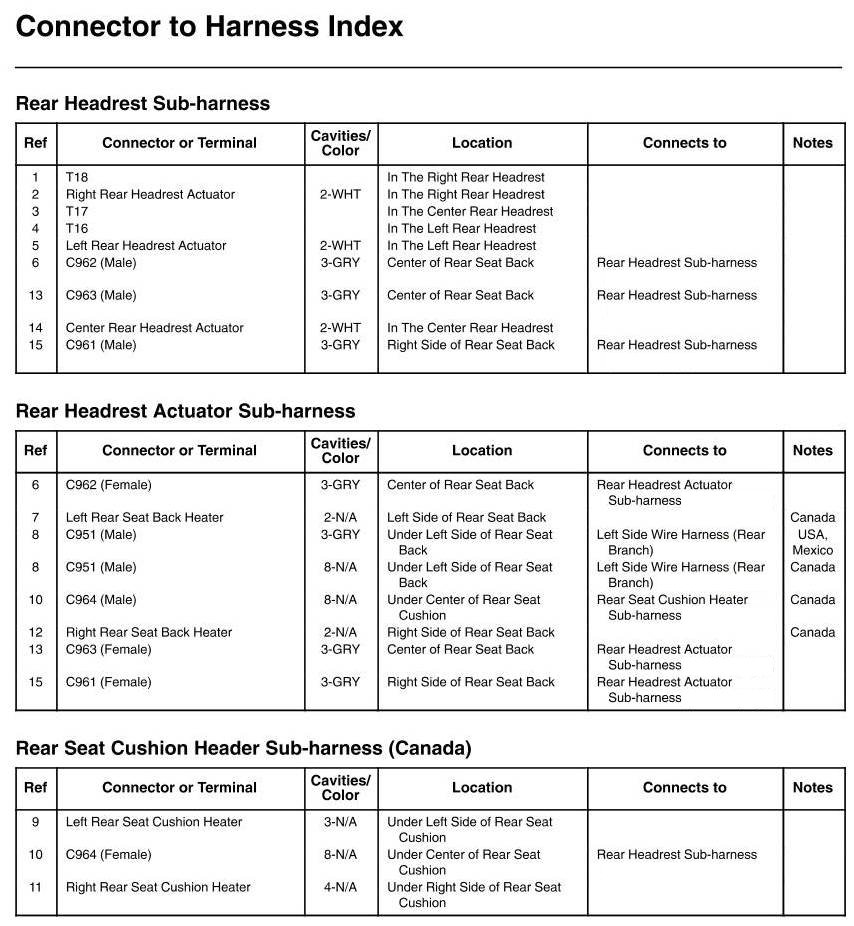

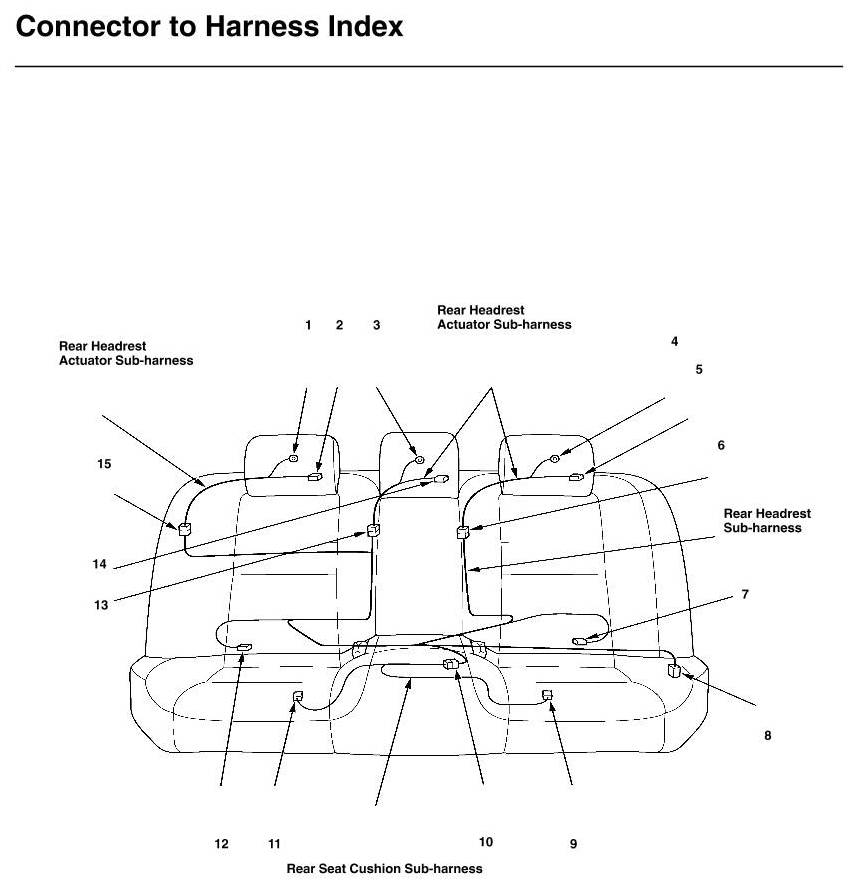

Rear Headrest Sub-harness, Rear Headrest Actuator Sub-harness, and Rear Seat Cushion Header Sub-harness (Canada) Connector and Harness Locations
