Front Passenger's Seat Cushion Front Fan Motor Connector View (USA: Hawaii, Technology Package, Advance Package; Canada; Elite)

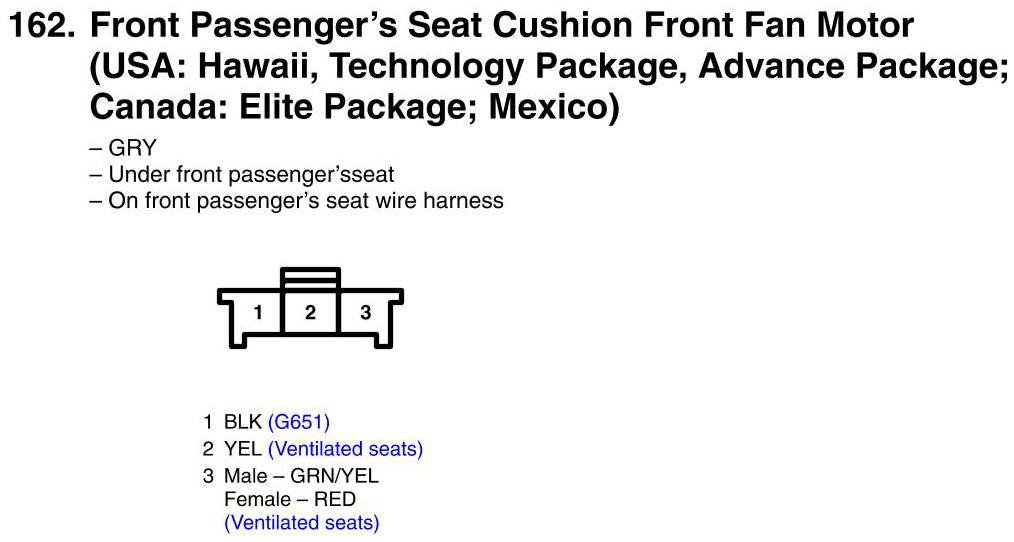

View 162 - Front Passenger's Seat Cushion Front Fan Motor Connector View (USA: Hawaii, Technology Package, Advance Package; Canada: Elite Package; Mexico)
