Voice Activation Switch: Service and Repair

Voice Control Switch Replacement

SRS components are located in this area. Review the SRS component locations Locations, and the precautions and procedures Service and Repair in the SRS section before doing repairs or service.

1. Remove the steering wheel Steering Wheel Removal.

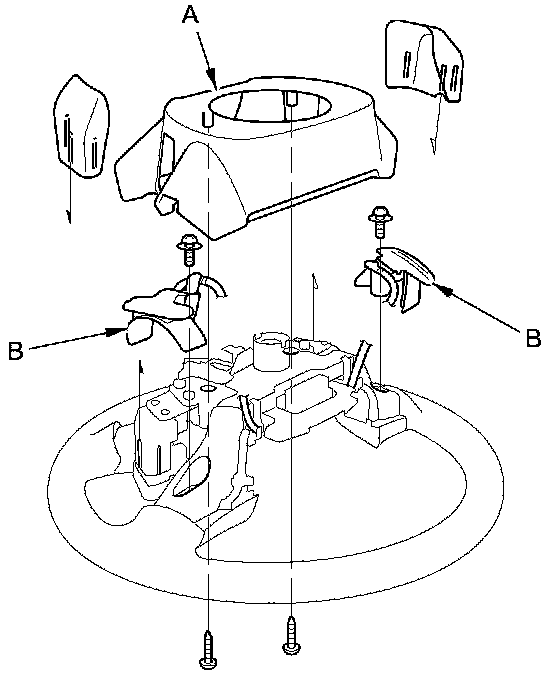

2. Remove the steering wheel rear cover (A) and the paddle shift switches (B).

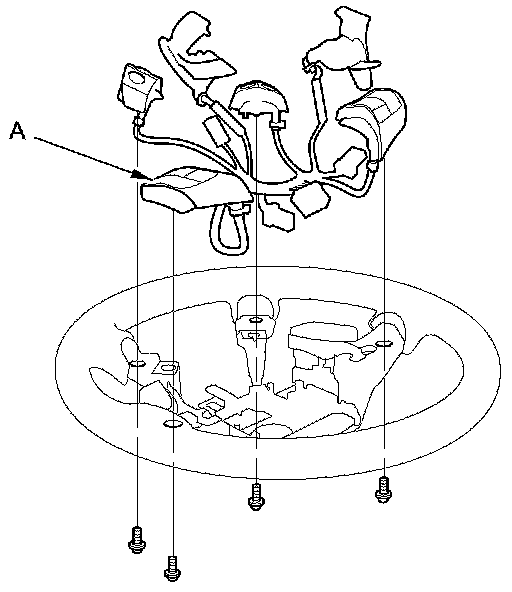

3. Remove the voice control switch assembly (A).





4. Install the voice control switch in the reverse order of removal.
