Remote Switch: Service and Repair

Audio Remote Switch Replacement

SRS components are located in this area. Review the SRS component location Locations, and the precautions and procedures Service and Repair in the SRS section before doing repairs or service.

1. Remove the steering wheel Steering Wheel Removal.

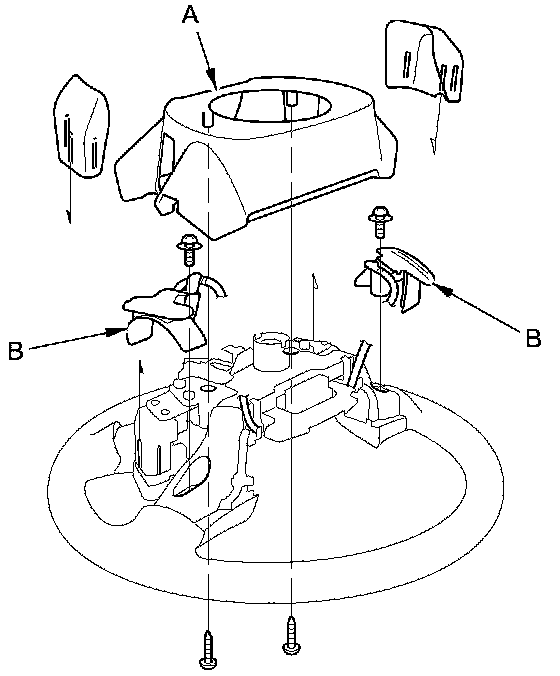

2. Remove the steering wheel rear cover (A) and the paddle shift switches (B).

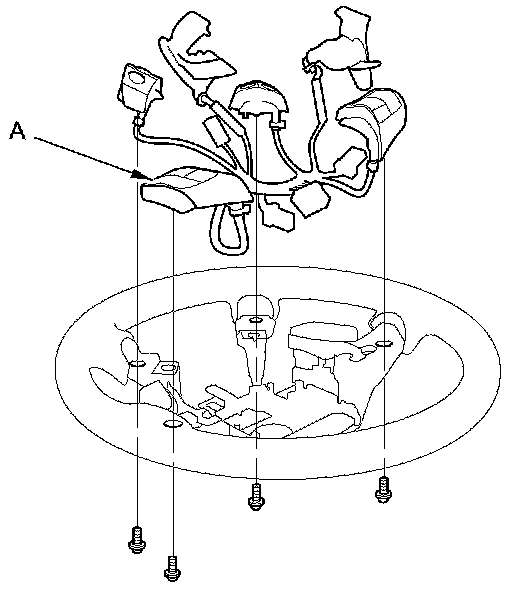

3. Remove the audio remote switch assembly (A).





4. Install the parts in the reverse order of removal.
