Rear Center Sensor Replacement

Rear Center Sensor Replacement

1. Remove the rear bumper Service and Repair.

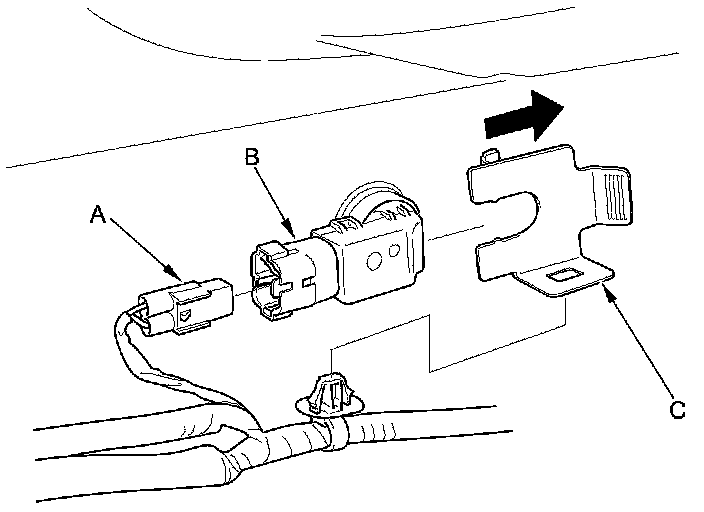

2. Disconnect the 2P connector (A) and harness clip from the back-up sensor (B).






3. Remove the retainer (C) and the sensor.

4. Install the parts in the reverse order of removal.
