Cabin Noise Sensor: Service and Repair

ANC/Active Sound Control Microphone Removal/Installation

1. Remove the headliner Service and Repair.

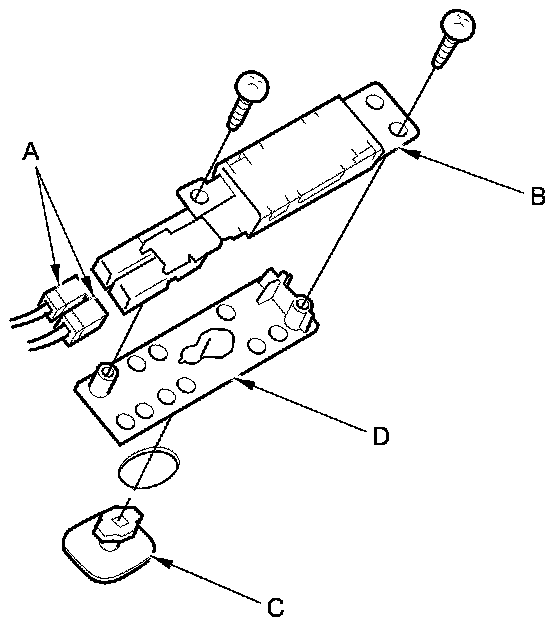

2. Disconnect the connectors (A), then remove the screws and the ANC/active sound control microphone (B).





3. Remove the cap (C) from the base (D).

4. Install the microphone in the reverse order of removal.
