Antenna Amplifier: Service and Repair

AM/FM Antenna Amplifier Replacement

1. Remove the C-pillar trim Service and Repair.

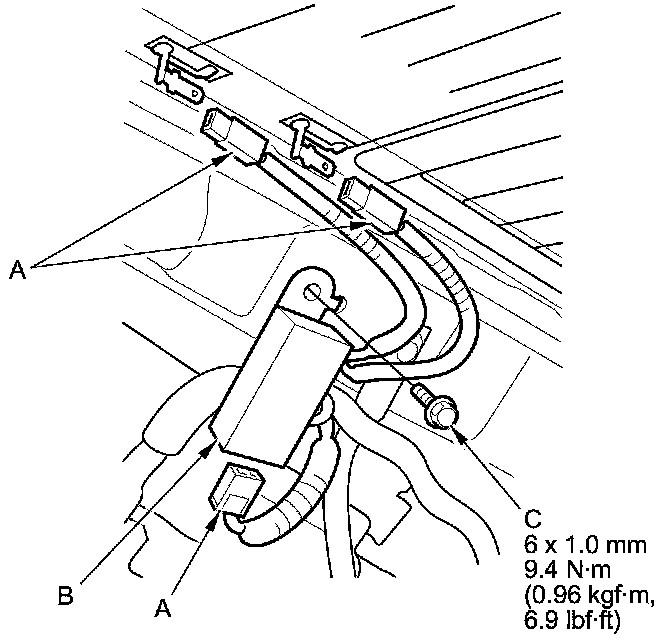

2. Disconnect the connectors (A) from the AM/FM antenna amplifier (B).

AM/FM main antenna amplifier





AM/FM subantenna amplifier





3. Remove the bolt (C) and AM/FM antenna amplifier.

4. Install the AM/FM amplifier in the reverse order of removal.
