A/T Shift Lever Installation




A/T Shift Lever Installation

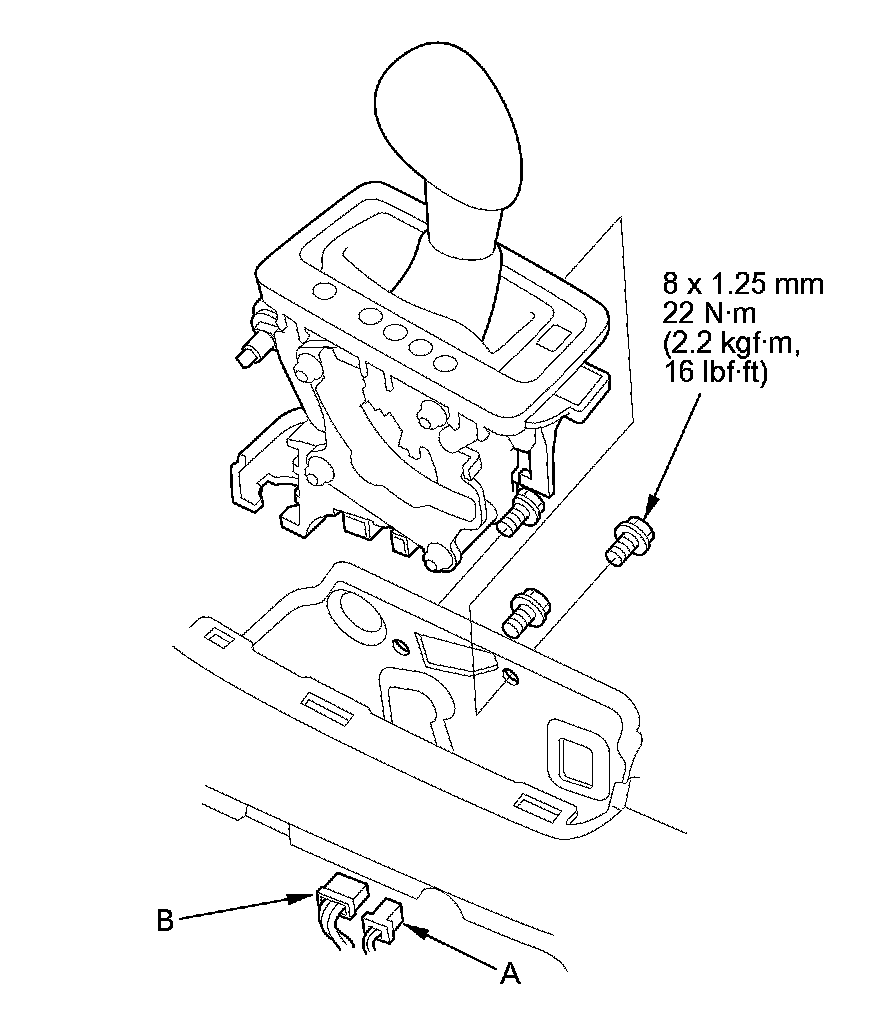

1. Install the shift lever assembly.





2. Connect the shift lock solenoid connector (A) and the park pin switch/A/T gear position indicator panel light connector (B).

3. Install the shift cable on the shift lever, and adjust the shift cable.
