Connector Locations




Fuse/Relay Box Connector Locations

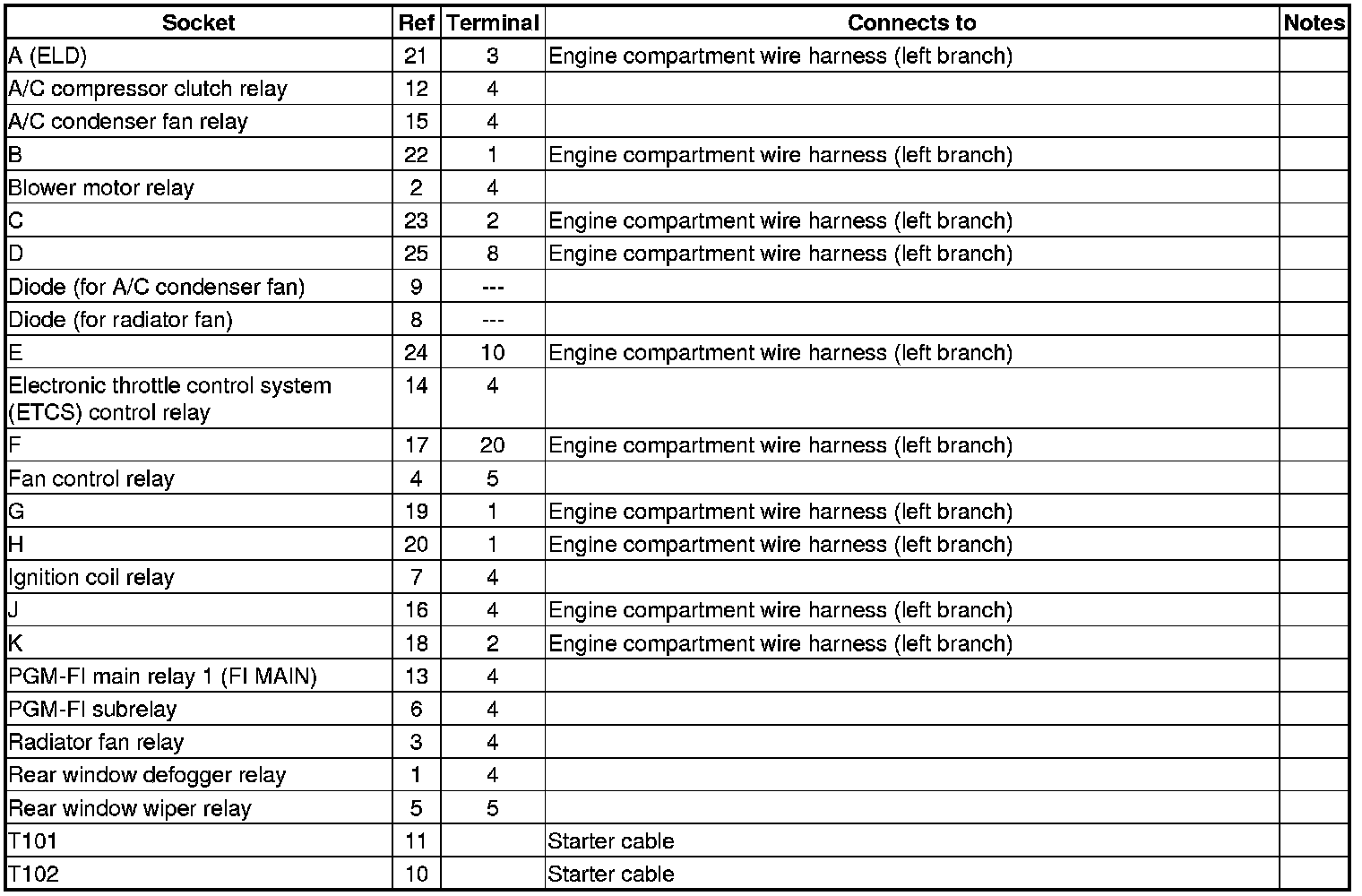

Under-Hood Fuse/Relay Box

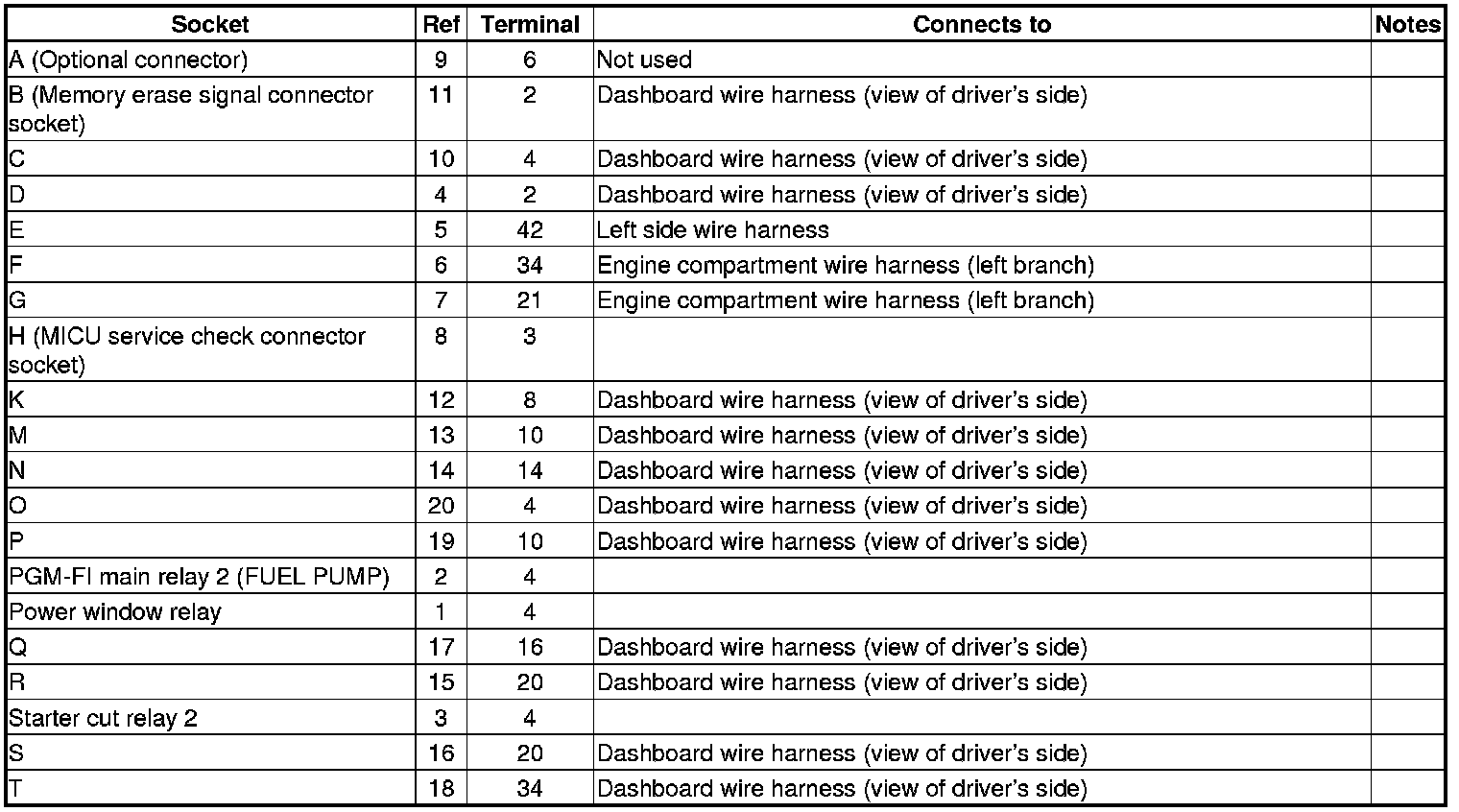

Auxiliary Under-Hood Fuse/Relay Box









Under-Dash Fuse/Relay Box
