Acura
>>
2011
>>
RDX AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Power and Ground Distribution
>>
Relays and Modules - Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>

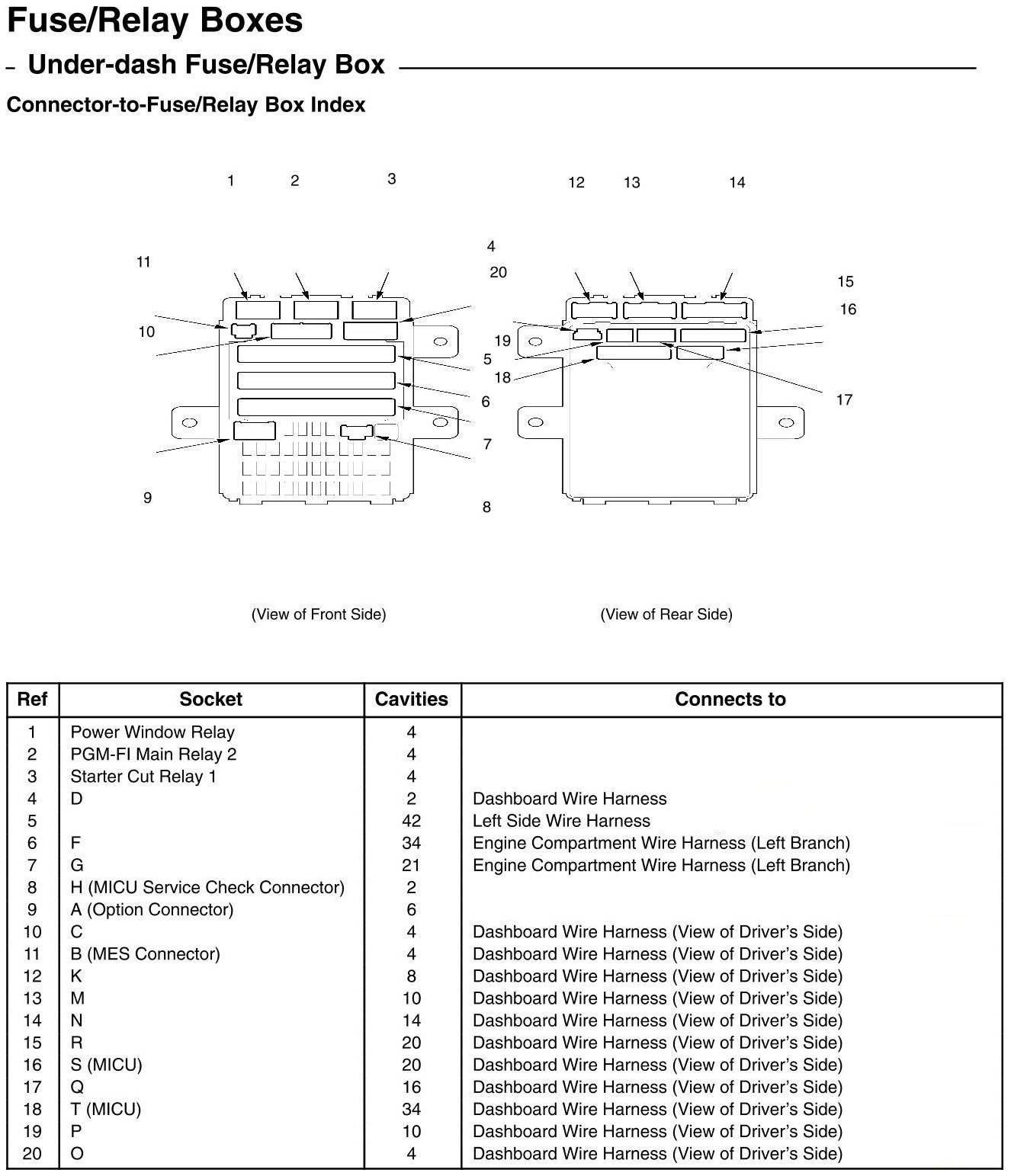

Under-Dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index (Acura Accessory)
Under-Dash Fuse/Relay Box - Connector-to-Fuse/Relay Box Index (Acura Accessory)
