Home >> Acura >> 2011 >> RDX AWD L4-2.3L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Windows and Glass >> Power Window Switch >> Diagrams >> Power Window Master Switch Connector View

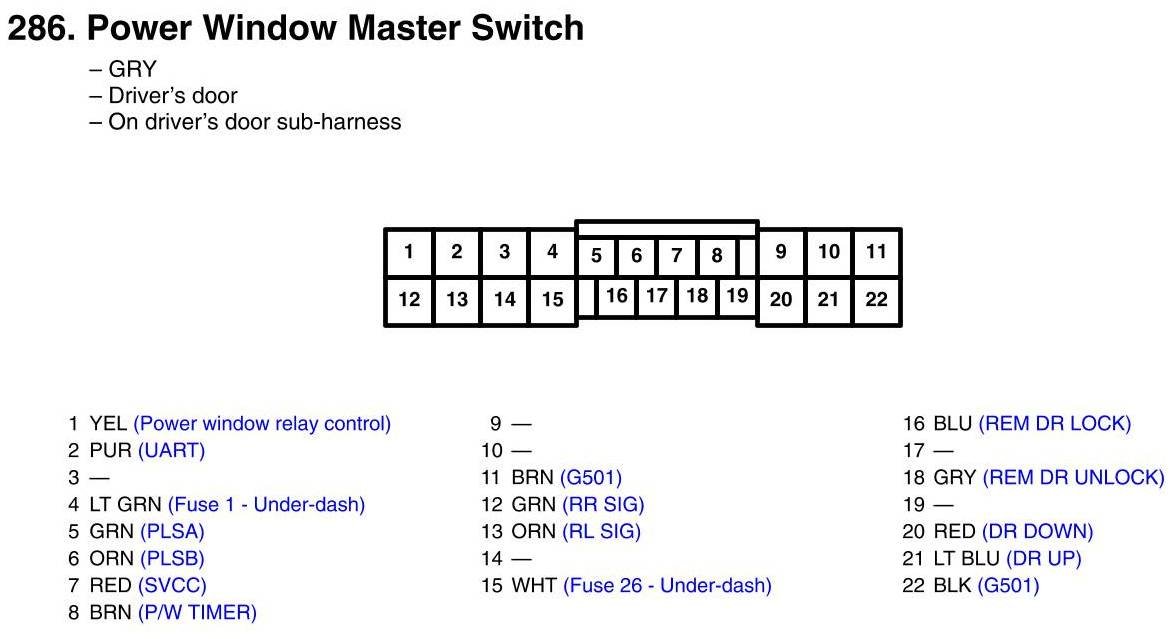

Power Window Master Switch Connector View
