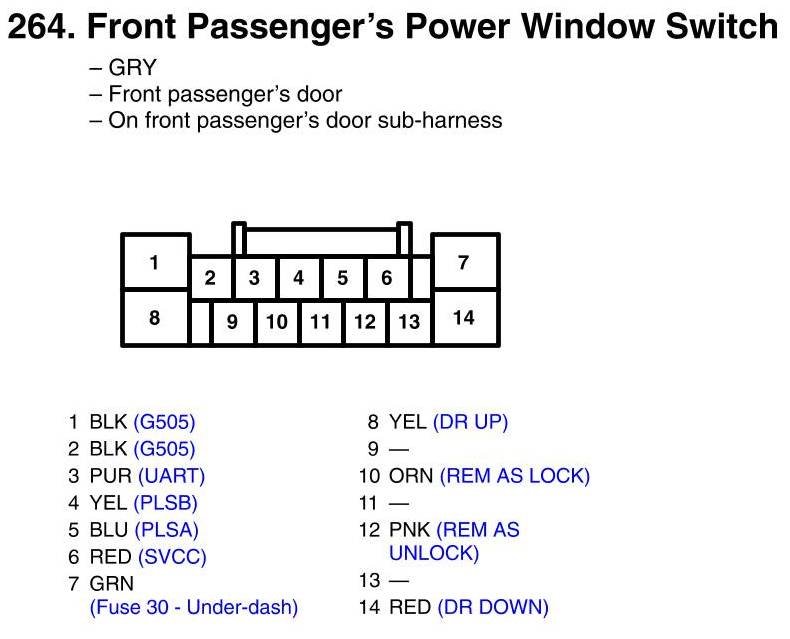

Front Passenger's Power Window Switch Connector View
Front Passenger's Power Window Switch Connector View
