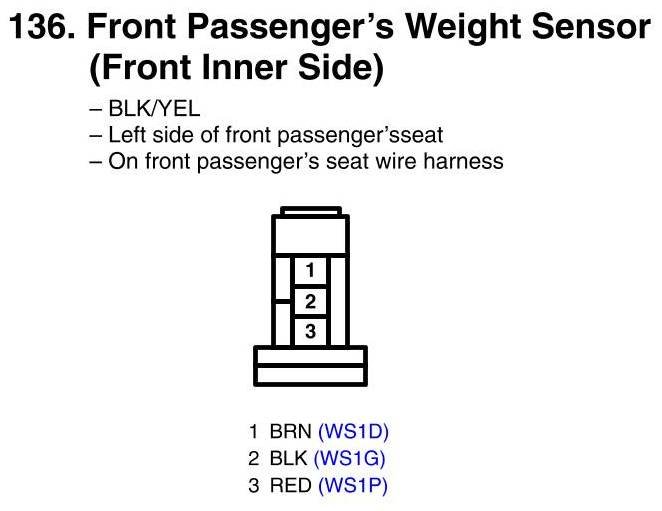

Front Passenger's Weight Sensor (Front Inner Side) Connector View
Front Passenger's Weight Sensor (Front Inner Side) Connector View
