Home >> Acura >> 2011 >> RDX AWD L4-2.3L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Trunk / Liftgate Switch >> Diagrams >> Tailgate Release Actuator/Latch Switch Connector View

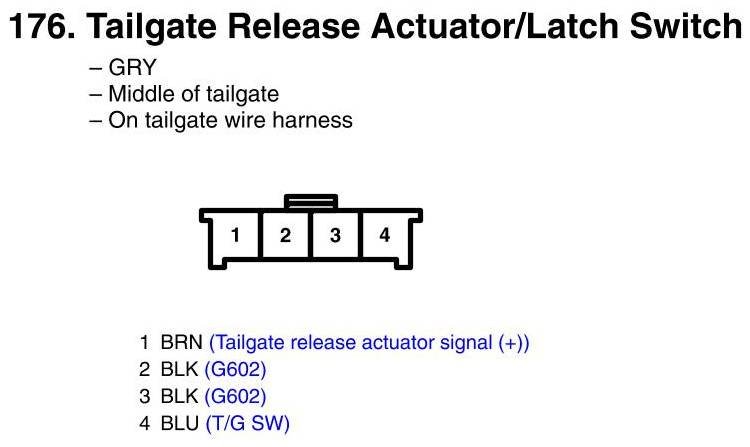

Tailgate Release Actuator/Latch Switch Connector View
