Home >> Acura >> 2011 >> RDX AWD L4-2.3L Turbo >> Repair and Diagnosis >> Sensors and Switches >> Sensors and Switches - Body and Frame >> Seat Temperature Switch >> Diagrams >> Front Passenger's Seat Heater Switch Connector View

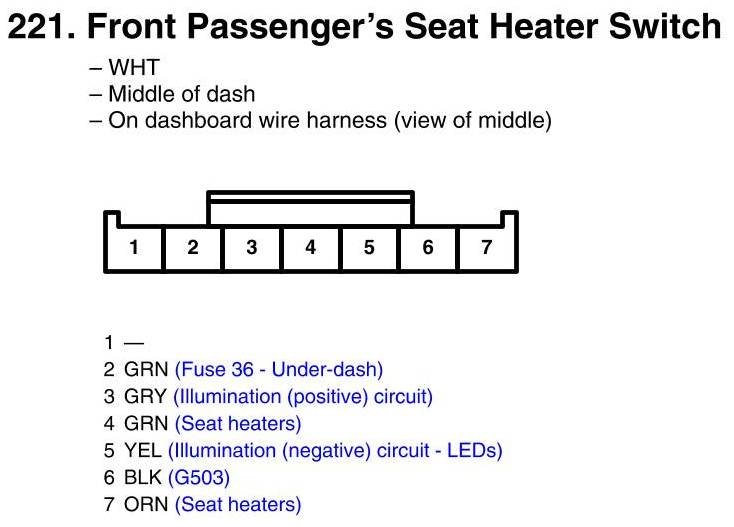

Front Passenger's Seat Heater Switch Connector View
