Home
>>
Acura
>>
2011
>>
RDX AWD L4-2.3L Turbo
>>
Repair and Diagnosis
>>
Restraints and Safety Systems
>>
Sensors and Switches - Restraints and Safety Systems
>>
Seat Belt Buckle Switch
>>
Diagrams
>>

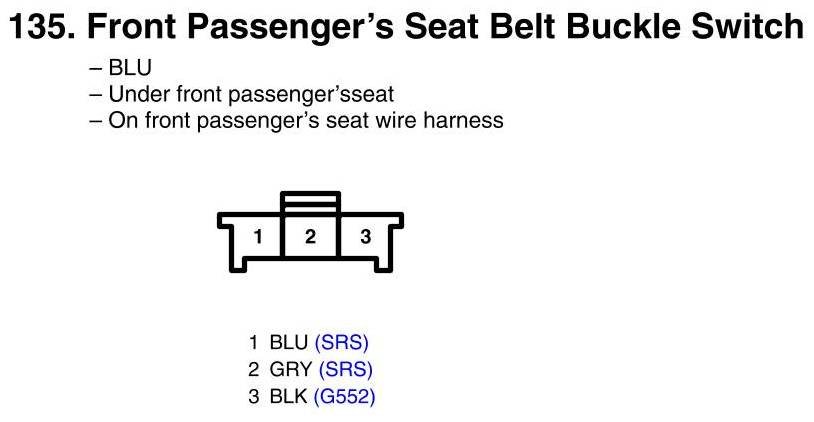

Front Passenger's Seat Belt Buckle Switch Connector View
Front Passenger's Seat Belt Buckle Switch Connector View
