Passenger's Airbag Cutoff Indicator Illumination Bulb Test

Passenger's Airbag Cutoff Indicator Illumination Bulb Test

NOTE: Information marked with an asterisk (*) applies to models with the navigation system.

1. Remove the center panel Dashboard Center Panel Removal/Installation.

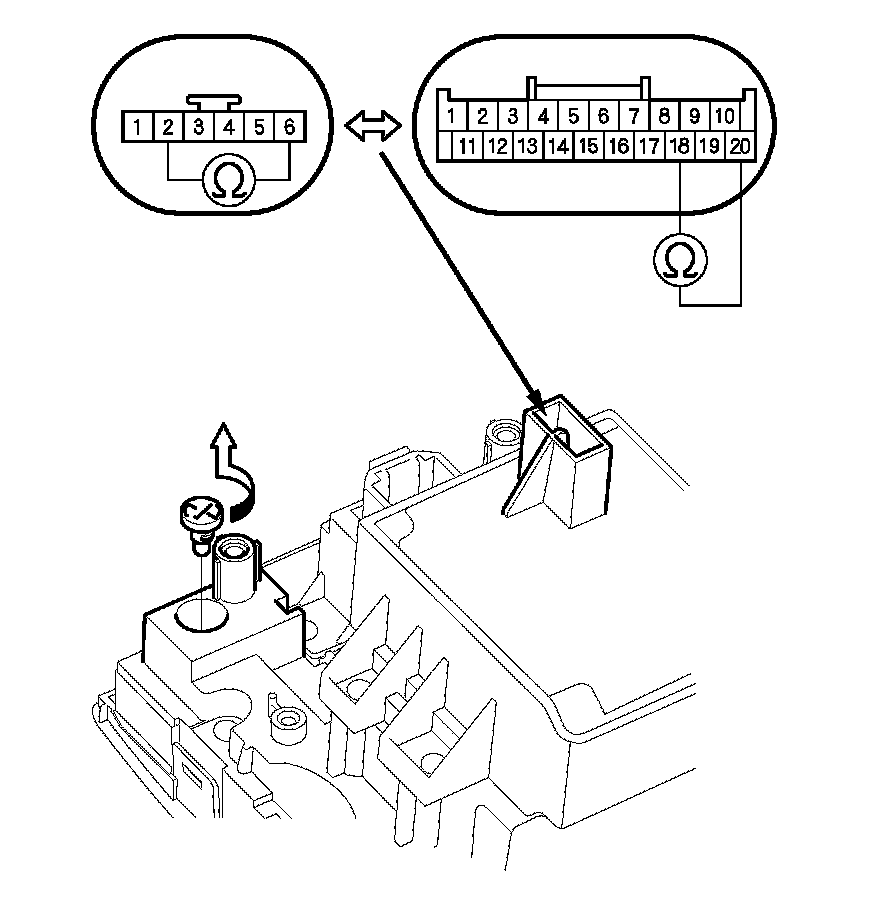

2. Check for continuity between the No. 2*or No. 18 and No. 6*or No. 20 terminals of the indicator. If there is no continuity, replace the bulb.

*: With navigation system





3. Reinstall the parts in the reverse order of removal.
