Air Bypass Valve Solenoid: Service and Repair




Turbocharger Bypass Control Solenoid Valve Replacement

1. Remove the charge air cooler cover.

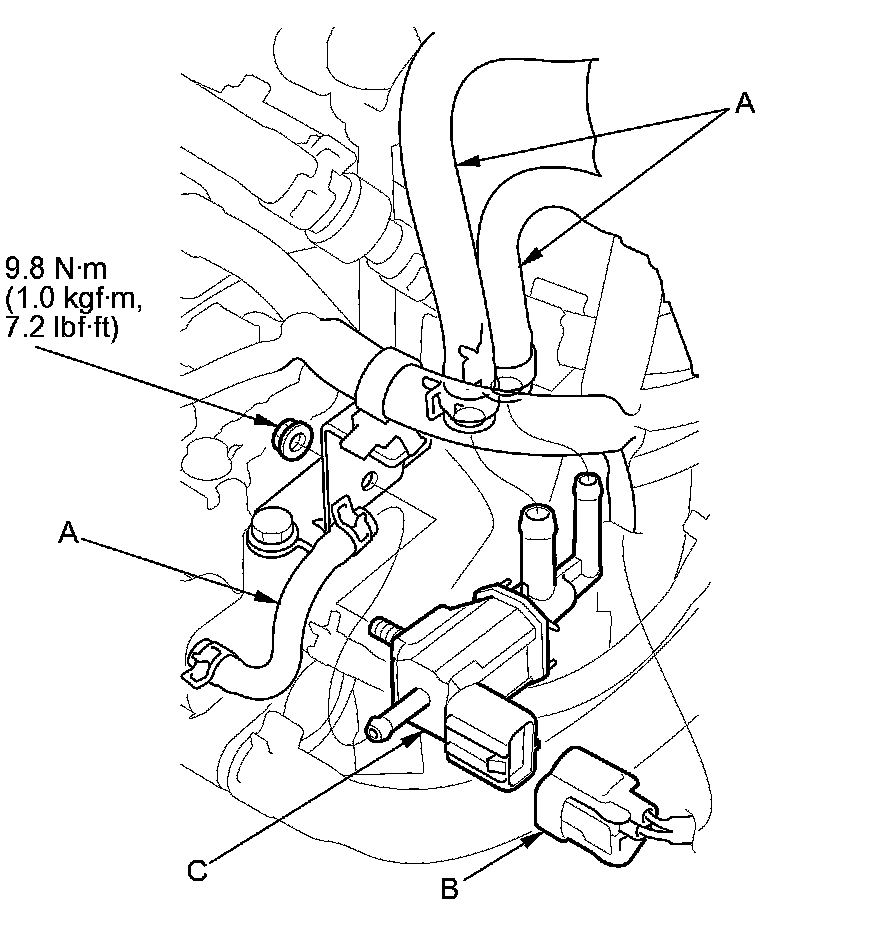

2. Disconnect the hoses (A).





3. Disconnect the turbocharger bypass control solenoid valve connector (B).

4. Remove the turbocharger bypass control solenoid valve (C).

5. Install the parts in the reverse order of removal.
