Turbo Boost Sensor: Service and Repair

Turbocharger Boost Sensor Replacement

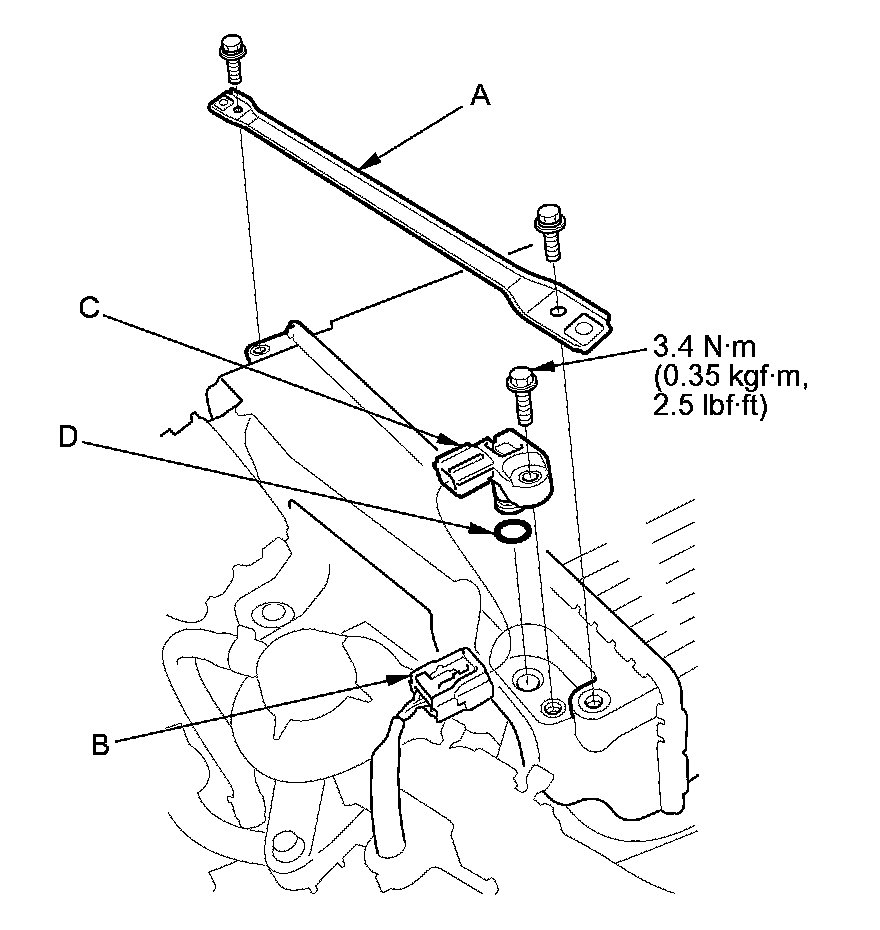

1. Remove the charge air cooler cover.

2. Remove the charge air cooler cover stay (A).





3. Disconnect the turbocharger boost sensor connector (B).

4. Remove the turbocharger boost sensor (C).

5. Install the parts in the reverse order of removal with a new O-ring (D).
