Evaporative Emission Control Canister: Service and Repair

EVAP Canister Replacement

1. Raise the vehicle on a lift Service and Repair.

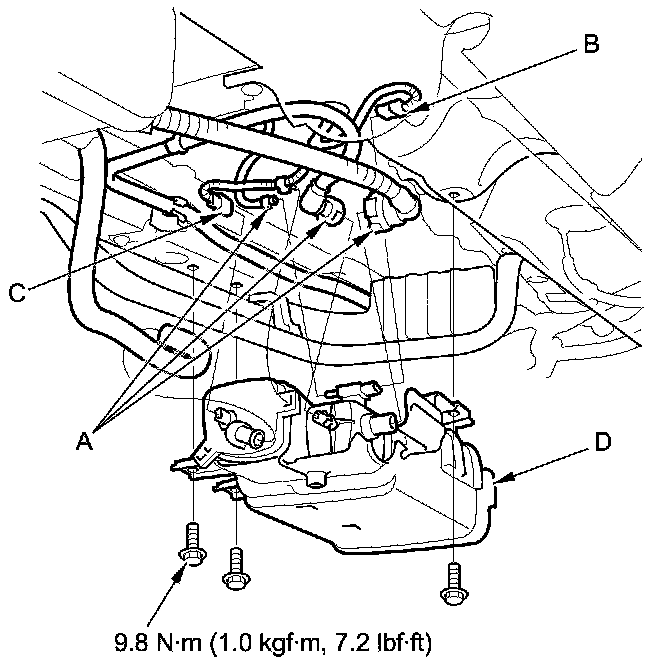

2. Disconnect the hoses (A), the FTP sensor 3P connector (B), and the EVAP canister vent shut valve 2P connector (C).





3. Remove the EVAP canister assembly (D).

4. Remove the EVAP canister bracket (A) and the EVAP canister cover (B) from the EVAP canister (C).





5. Install the parts in the reverse order of removal.
