Under-Floor TWC Removal/Installation

Under-Floor TWC Removal/Installation

1. Raise the vehicle on a lift Service and Repair.

2. Remove the under-floor TWC (A).

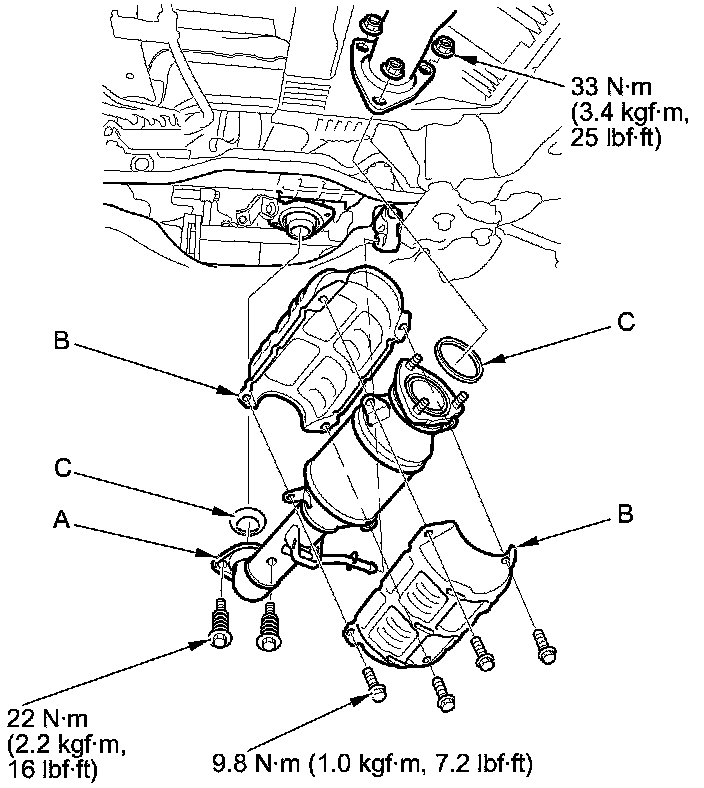

Without SH-AWD

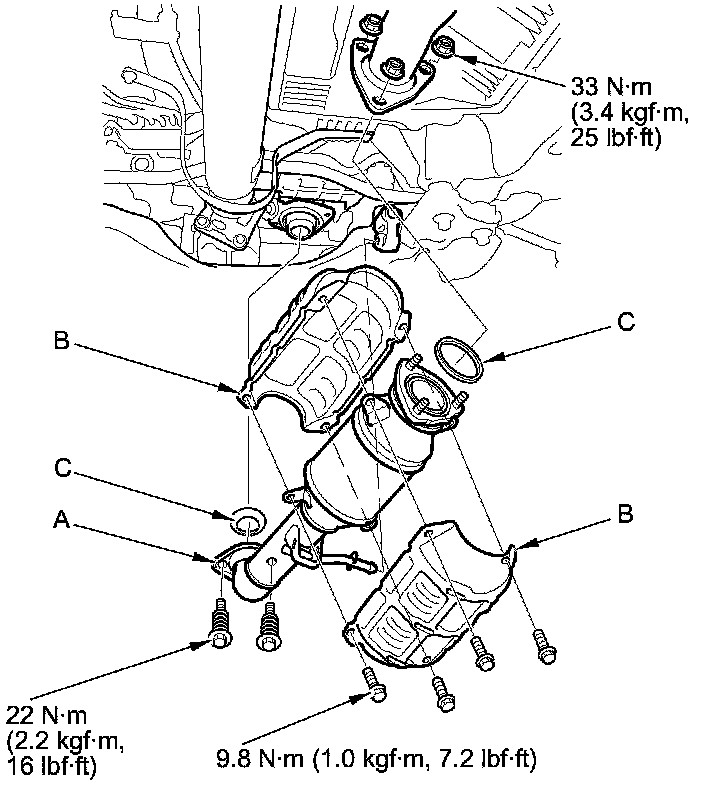

With SH-AWD





3. Remove the converter cover (B).

4. Install the parts in the reverse order of removal with new gaskets (C).
