Drive Belt Auto-Tensioner Removal/Installation




Drive Belt Auto-Tensioner Removal/Installation

1. Remove the drive belt Testing and Inspection.

2. Remove the power steering fluid reservoir from the holder.

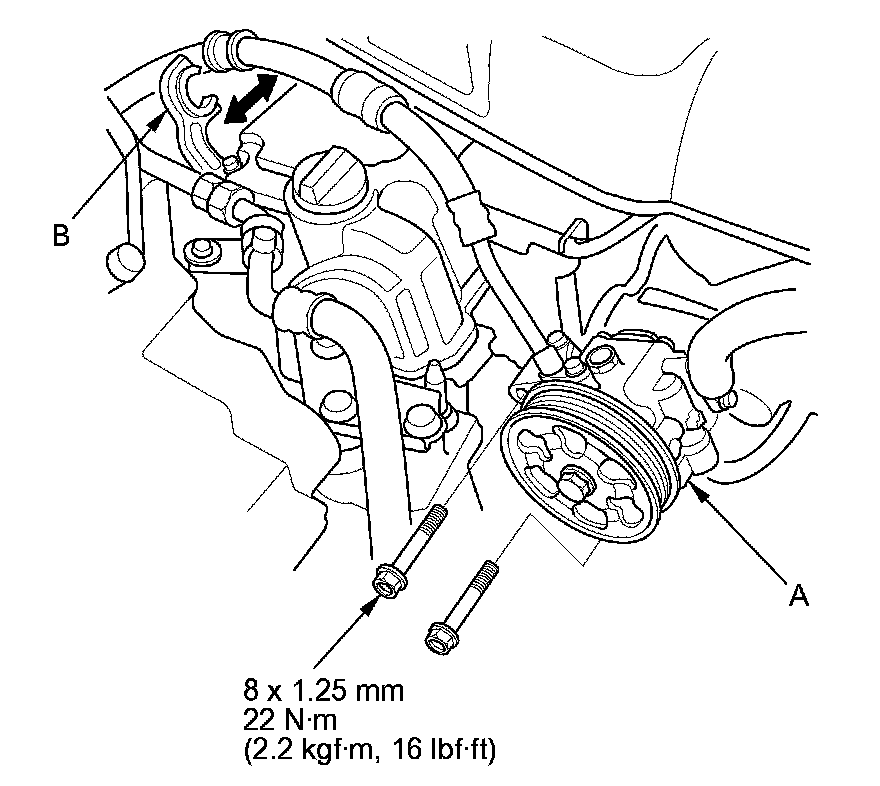

3. Remove the power steering pump (A) without disconnecting the power steering hoses, then remove the power steering hose from the clamp (B).

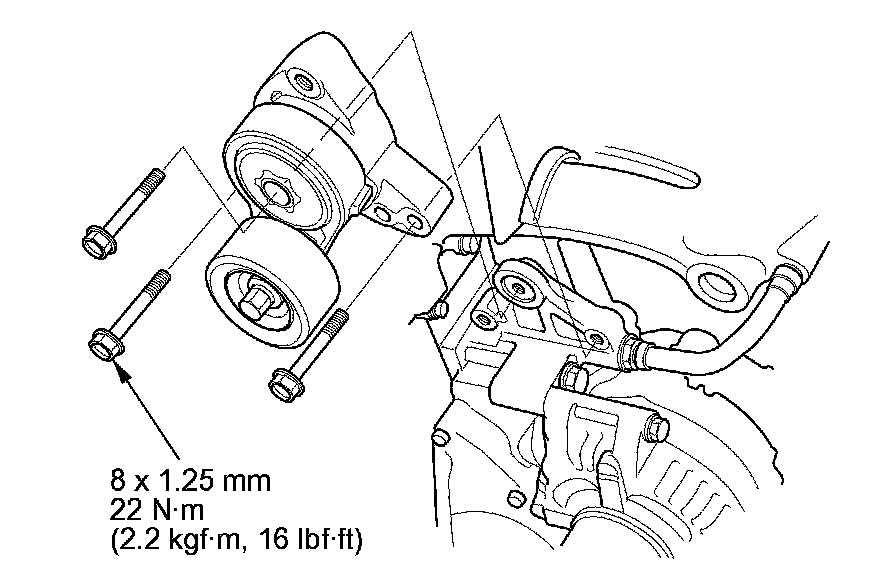

4. Remove the drive belt auto-tensioner.





5. Install the auto-tensioner in the reverse order of removal.
