Drive Belt Auto-Tensioner Pulley Replacement




Drive Belt Auto-Tensioner Pulley Replacement

1. Remove the drive belt Service and Repair.

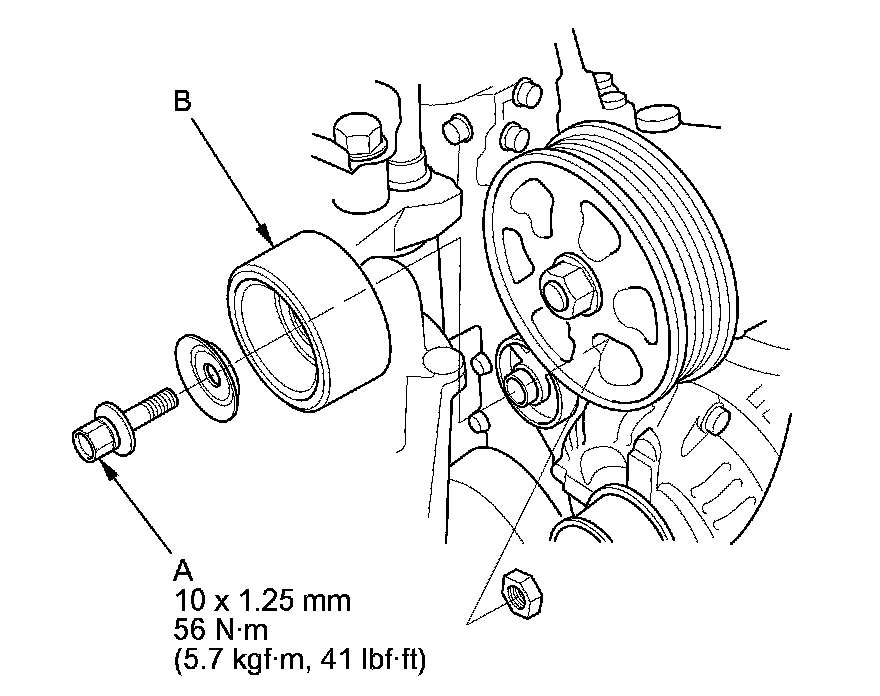

2. Remove the tensioner pulley bolt (A), then remove the tensioner pulley (B).






3. Install the tensioner pulley in the reverse order of removal.
