Home >> Acura >> 2011 >> RDX AWD L4-2.3L Turbo >> Repair and Diagnosis >> Diagrams >> Harness >> Engine Compartment Wire Harness (Right Branch) Connector And Harness Locations

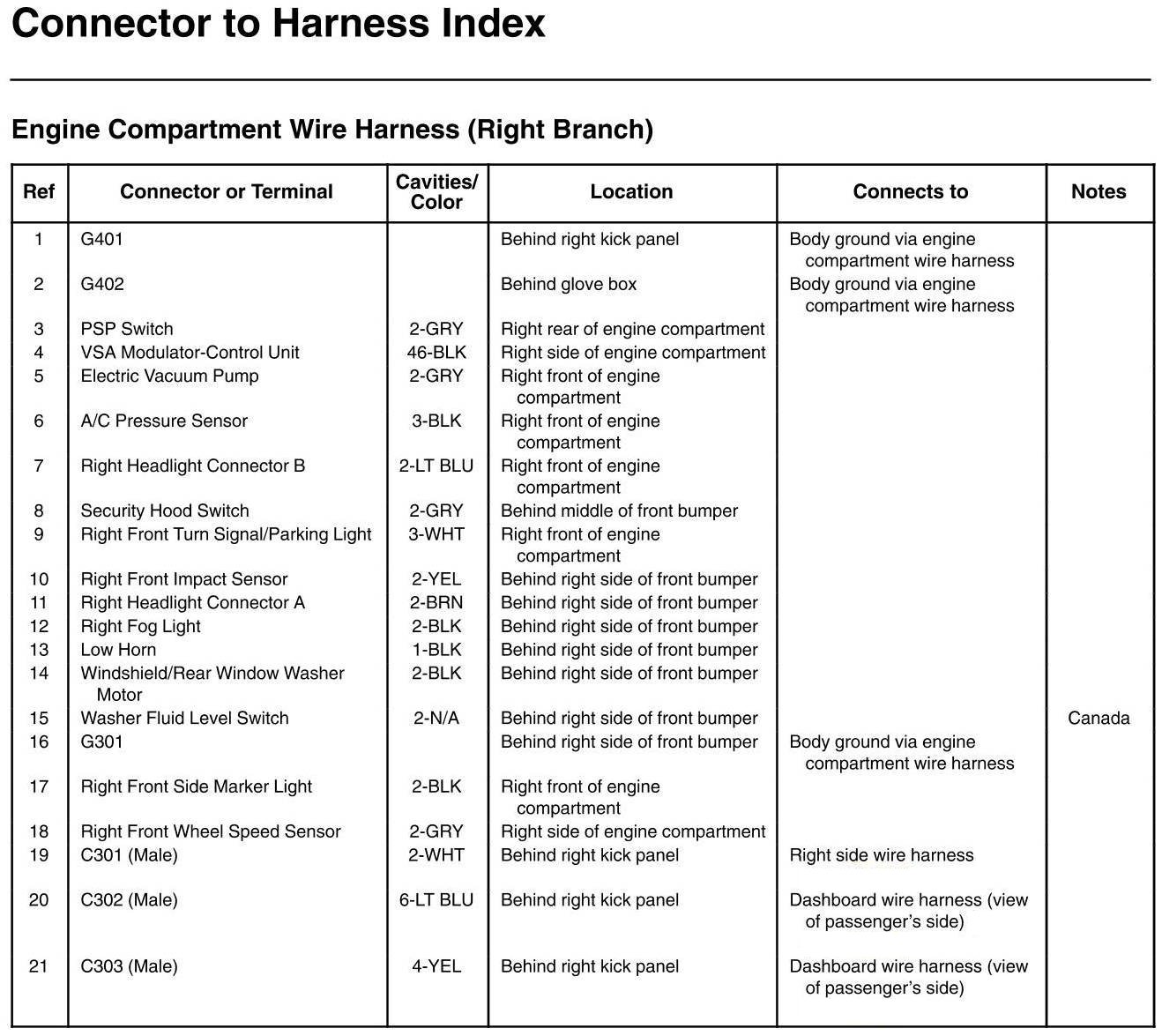

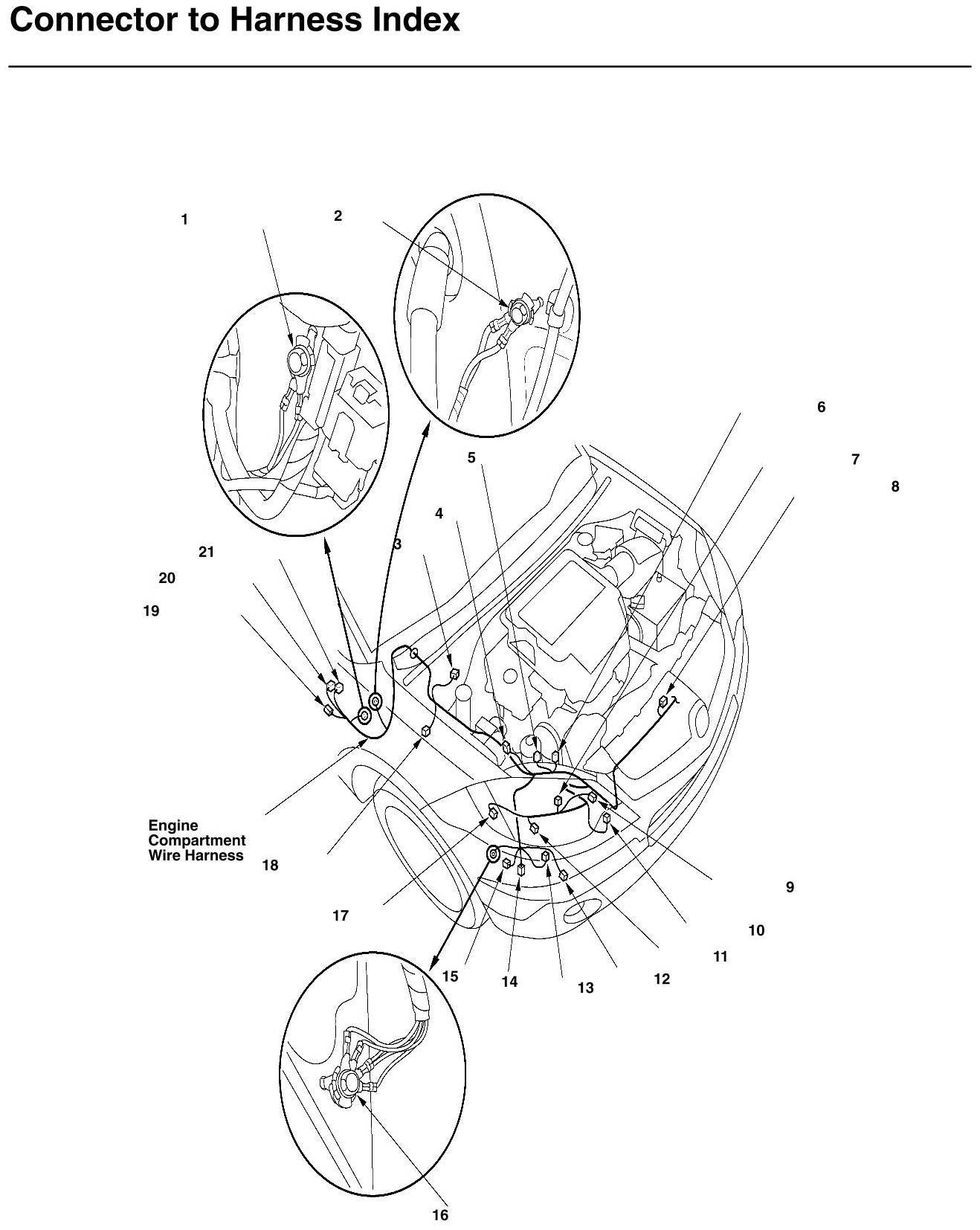

Engine Compartment Wire Harness (Right Branch) Connector And Harness Locations
