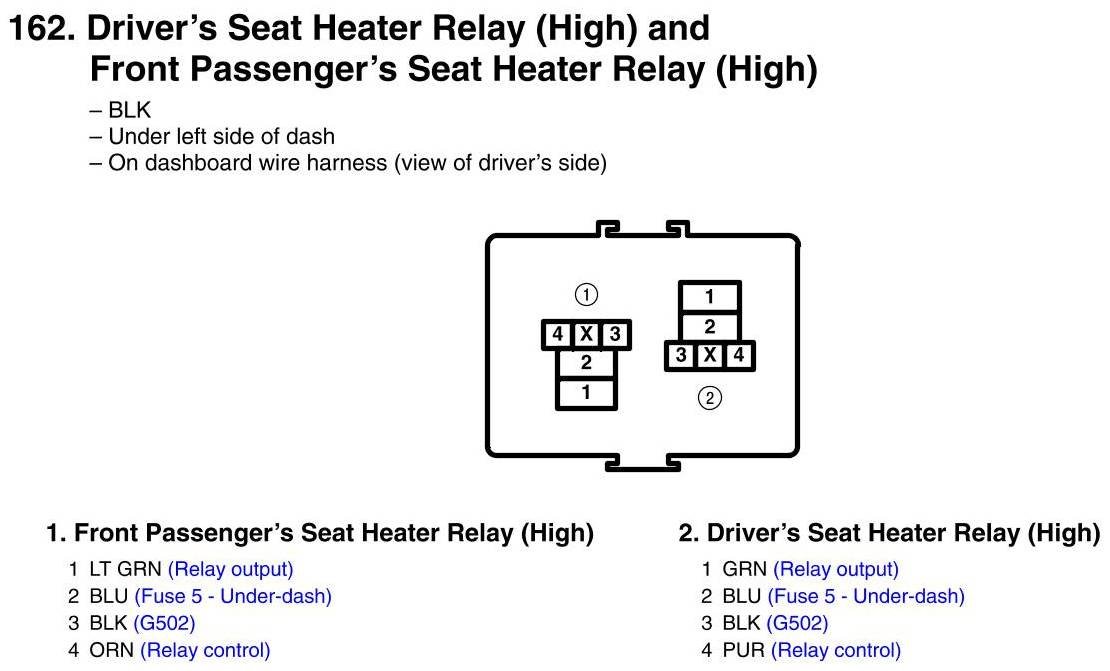

Driver's Seat Heater Relay (High) And Front Passenger's Seat Heater Relay (High) Connector View
Driver's Seat Heater Relay (High) And Front Passenger's Seat Heater Relay (High) Connector View
