Antenna, Radio
>>
Location By Photo
>>

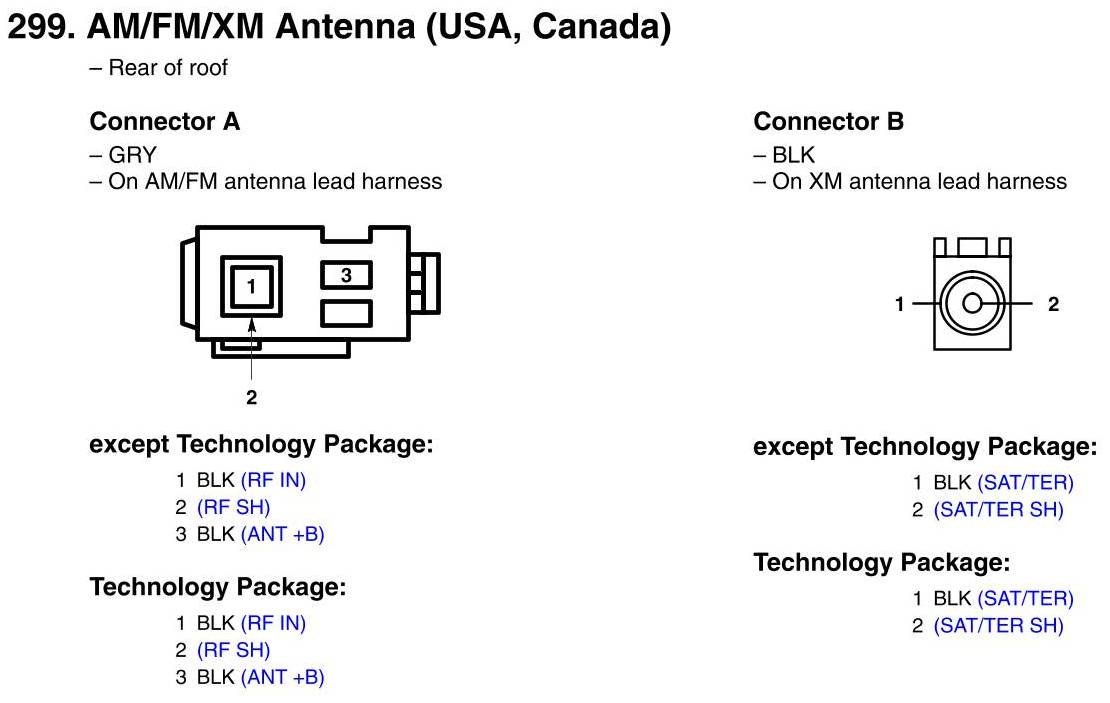

AM/FM/XM Antenna Connector View (USA, Canada)
AM/FM/XM Antenna Connector View (USA, Canada)
