Sunroof / Moonroof Switch: Service and Repair

Moonroof Switch Test/Replacement

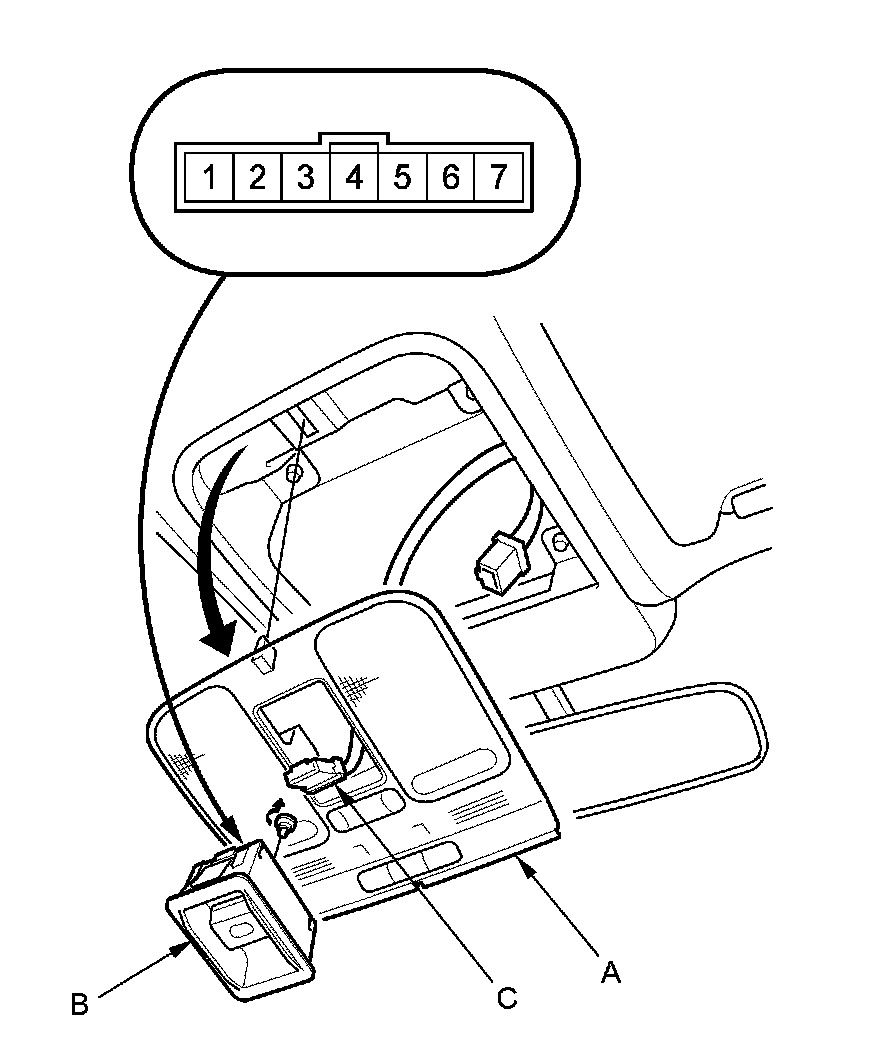

1. Pull down the roof console (A) holding the center part of the roof console.





2. Carefully push out the moonroof switch (B) from behind the roof console, then disconnect the 7P connector (C) from the switch.

3. Check for continuity between the terminals in each switch position according to the table.





4. If the continuity is not as specified, check the bulb. If the bulb is OK, replace the switch.
