Blind Spot Information System (BSI)

The blind spot information system (BSI) that turns on the BSI alert indicators (A) beside the door mirrors when another vehicle in the next lane enters the "blind" area, where the driver cannot see the vehicle with his peripheral vision or with the inside and outside rearview mirrors.

The BSI system turns on/blinks* the BSI alert indicator in the following situations.

*: When moving the turn signal lever toward the side with the BSI alert indicator on, the alert indicator blinks to alert driver.

Fig 1: Identifying BSI Alert Indicator

Courtesy of AMERICAN HONDA MOTOR CO., INC.

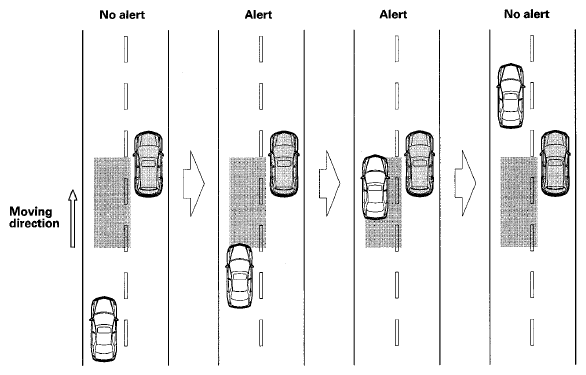

1. Pass from rear
   • Vehicle operation speed: 6-99 mph (10-160 km/h)
   Fig 2: Displaying - Pass From Rear Vehicle Operation Speed 6-99 mph (10-160 Km/h)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

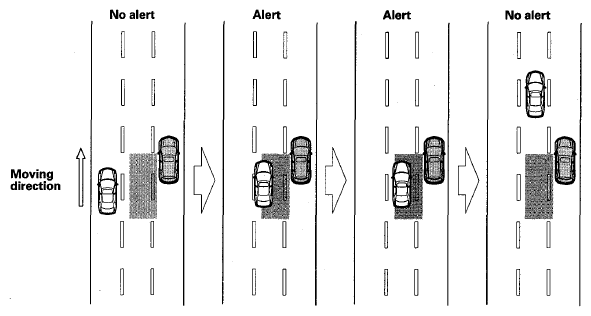

2. Lane changes
   • Vehicle operation speed: 6-99 mph (10-160 km/h)
   • Relative speed: more less 12 mph (20 km/h)
   Fig 3: Displaying - Lane Changes Vehicle Operation Speed 6-99 mph (10-160 Km/h)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

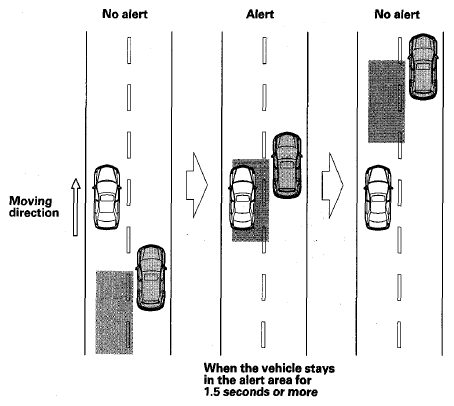

3. Passing
   • Vehicle operation speed: 6-99 mph (10-160 km/h)
   • Relative speed: more less 12 mph (20 km/h)
   Fig 4: Displaying - Passing Vehicle Operation Speed 6-99 mph (10-160 Km/h)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

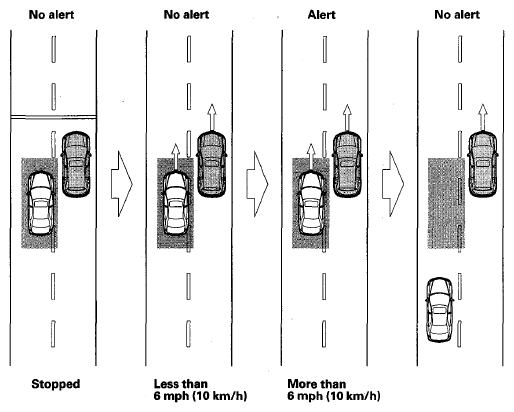

4. Starting
   • Vehicle operation speed: 6-99 mph (10-160 km/h)
   Fig 5: Displaying - Starting Vehicle Operation Speed 6-99 mph (10-160 Km/h)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
5. One or more lanes apart
   • Vehicle operation speed: 6-99 mph (10-160 km/h)
   Fig 6: Displaying - One Or More Lanes Apart Vehicle Operation Speed 6-99 mph (10-160 Km/h)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

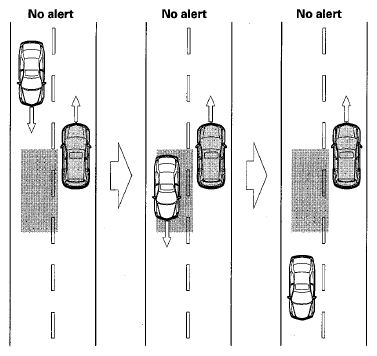

6. Oncoming cars
   • Vehicle operation speed: 6-99 mph (10-160 km/h)
   Fig 7: Displaying - Oncoming Cars Vehicle Operation Speed 6-99 mph (10-160 Km/h)

   Courtesy of AMERICAN HONDA MOTOR CO., INC.

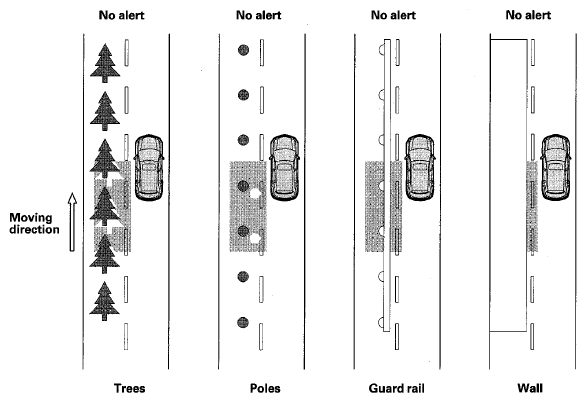

7. Static objects

• Vehicle operation speed: 6-99 mph (10-160 km/h)

Fig 8: Displaying - Static Objects Vehicle Operation Speed 6-99 mph (10-160 Km/h)

Courtesy of AMERICAN HONDA MOTOR CO., INC.
