Blind Spot Information System (BSI)

The BSI turns on the BSI alert indicators (A) on the door mirror covers when another vehicle in the next lane enters the "blind" area where the driver cannot see the vehicle with his peripheral vision or with the inside and outside rearview mirrors.

NOTE:

The BSI system does not ensure the safety of the vehicle occupants, nor does it help in low visibility situations such as bad weather.
The BSI system turns on/blinks* the BSI alert indicator in the following situations.

*: When moving the turn signal lever toward the side with the BSI alert indicator on, the alert indicator blinks to alert driver.

Fig 1: Identifying BSI Alert Indicators

Courtesy of AMERICAN HONDA MOTOR CO., INC.

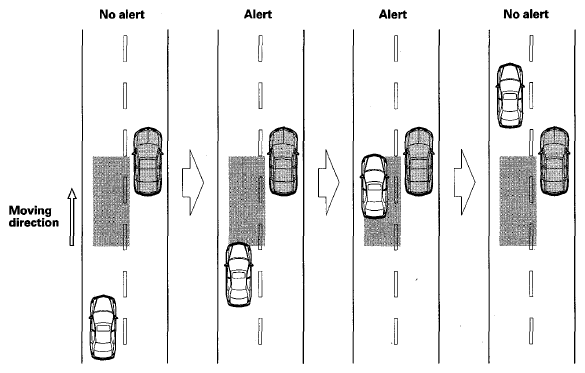

Pass from rear
- Vehicle operation speed: 6-99 mph (10-160 km/h)

  Fig 2: Vehicle Operation Speed Chart (Pass From Rear)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

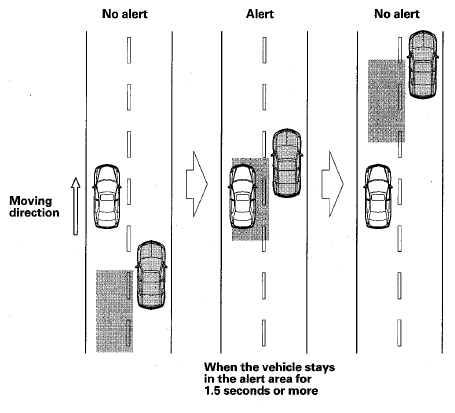

Lane changes
- Vehicle operation speed: 6-99 mph (10-160 km/h)
- Relative speed: About 12 mph (20 km/h)

  Fig 3: Vehicle Operation Speed Chart (Lane Changes)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

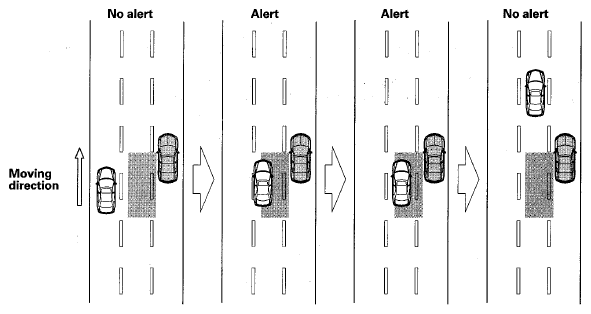

Passing
- Vehicle operation speed: 6-99 mph (10-160 km/h)
- Relative speed: About 12 mph (20 km/h)

  Fig 4: Vehicle Operation Speed Chart (Passing)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

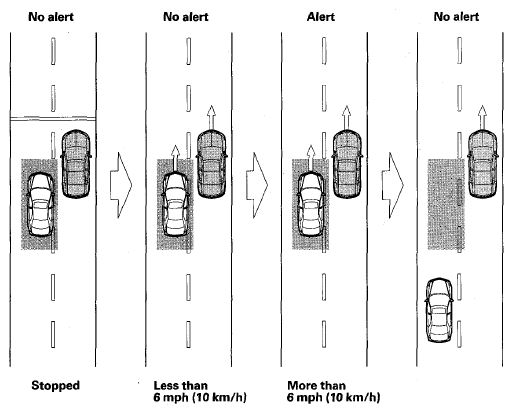

Starting
- Vehicle operation speed: 6-99 mph (10-160 km/h)

  Fig 5: Vehicle Operation Speed Chart (Starting)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
One or more lanes apart
- Vehicle operation speed: 6-99 mph (10-160 km/h)

  Fig 6: Vehicle Operation Speed Chart (One Or More Lanes Apart)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

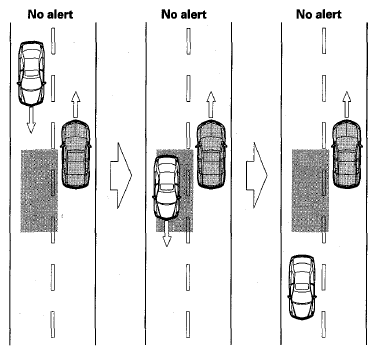

Oncoming cars
- Vehicle operation speed: 6-99 mph (10-160 km/h)

  Fig 7: Vehicle Operation Speed Chart (Oncoming Cars)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.

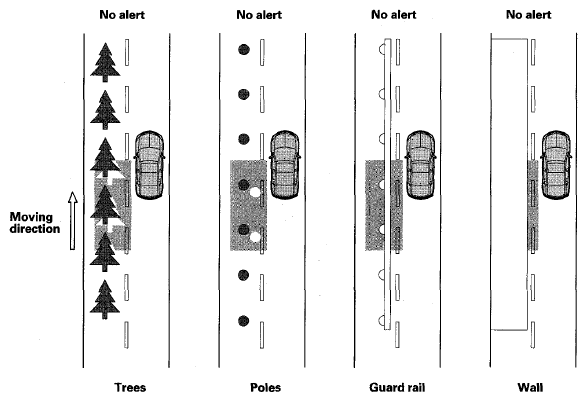

Static objects
- Vehicle operation speed: 6-99 mph (10-160 km/h)

  Fig 8: Vehicle Operation Speed Chart (Static Objects)
  Courtesy of AMERICAN HONDA MOTOR CO., INC.
